newest multifunctional farm tractor
newest multifunctional farm tractor
FOB Price:
US $25,000.000 / Set
Min.Order:
0 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qigndao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
A
Packaging & Delivery
Product Description

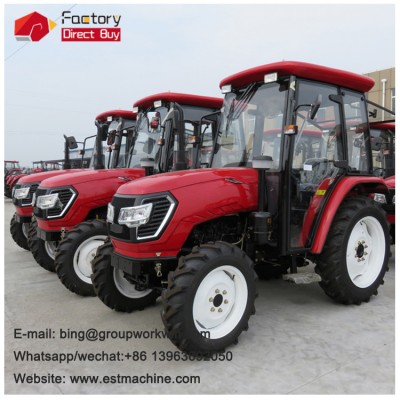

newest multifunctional farm tractor 主.jpg


The new multi-functional four-wheel rural management machine is short and powerful. It is an ideal farm machine for hilly area, fruit tree planting protection, loose soil, fertilizing and fruit harvest transportation.







Items

Unit

2804

Net Power of Engine

kW(HP)

206(280)

Driving Method


4x4(Four-wheel drive)

Dimension, Length/Width (tread) /Height (Cab Top)

mm

6350/2688(3798)/3480

Wheelbase

mm

3140

Wheelbase of Front Wheel

mm

1962-2270

Wheelbase of Rear Wheel

mm

1966-2582

Minimum Ground Clearances

mm

420

Minimum Steering Circle Radius

mm

7500

Minimum Working Weight

kg

10020

Front Counterweight≤

kg

1320

Rated Traction Force

kN

76

Power Output Shaft

 Model


Independent Rear-mounted

Standard RPM

r/min

540/1000

Maximum Lifting Force

kN

50

forward gear

Low RPM

The number of stalls


9

Driving Speed

km/h

2-29

High RPM

The number of stalls


9

Driving Speed

km/h

3-49

Reverse Shift

Shift


9

Driving Speed

km/h

2-29

Specification of Tire

Front Wheel


18.4-30R1

Rear Wheel


20.8-38R1

Diesel Engine

Nominated Power/RPM

kW/r/min

206/2200

Nominated Working Condition Fuel Oil Consumption Rate

g/kW·h

≤230


1. Supporting high pressure common rail engine with strong power, energy saving and environmental protection.

2. The gearbox has many gears, wide speed range, and high farmland operation efficiency.

3. Full hydraulic steering system with independent oil path. The main clutch adopts air booster mechanism with small pedal force and easy operation.

4. The standard configuration of the two wheels has high traction on the whole machine, which can satisfy the requirement of double-entry operation of large farm tools.

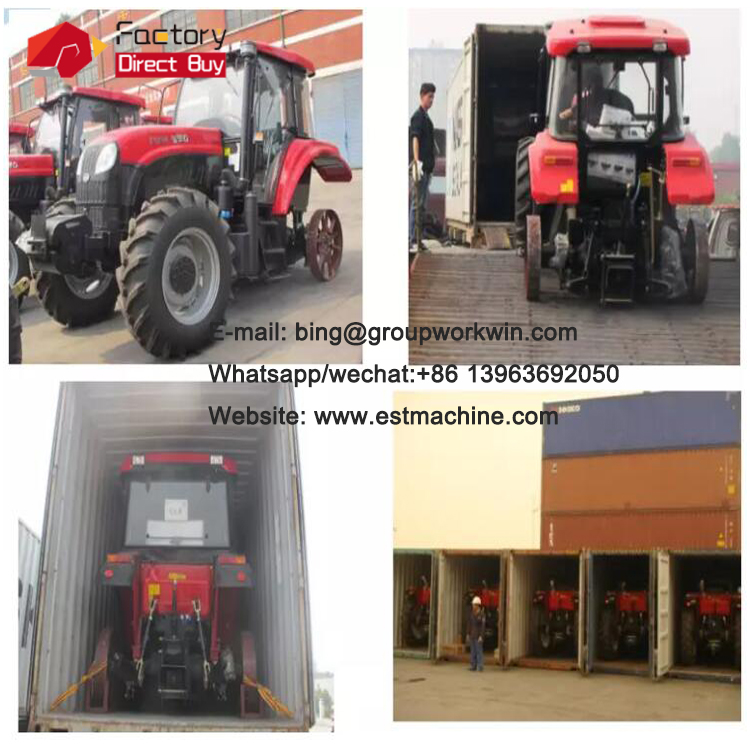

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.



JiNan Fangli Group Work Win supply chain co., LTD., located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.

E-mail: bing@groupworkwin.com

Whatsapp/wechat:+86 13963692050
Website: www.estmachine.com


Q:  I want to transport the truck by container, is it ok?

A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.



Q:How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.



Q:I want to be your agent in my country , is that ok?

A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.



Q:  I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?

A: We can make the tyres as your requirement to suit your country's need.
