big farming agriculture farm use tractor for sale
big farming agriculture farm use tractor for sale
FOB Price:
US $18,660.000 / Set
Min.Order:
0 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qigndao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
A
Packaging & Delivery
Product Description

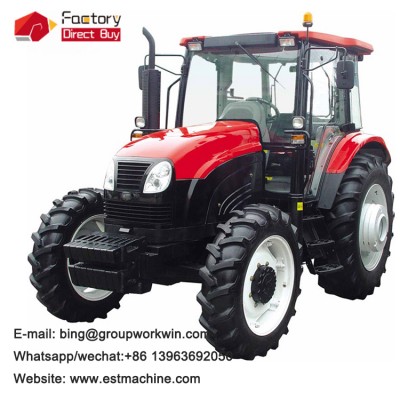

 big farming agriculture farm use tractor for sale


There are various models and optional configuration can be changed. We have professional engineers and production lines to provide best technical support and solution. If you have any questions about our products, please contact us any free time !



1.The famous Deutz brand engine from Germany is optional, which is more powerful, higher quality, smaller shock and lower noise.

2.The famous LUK clutch from Germany is optional, which is more torque, better wear-resisting, higher temperature resistance, better corrosion resistance and thermal conductivity.

3.The NSK axle bearing from Japan is optional, which is high precision, small friction coefficient and long service life.

4.Centralized soft shaft manipulation on the right side for a ergonomics design.

5.The hydraulic lifting device is equipped with two lifting cylinders, and the operation efficiency is higher and stronger.

6.The big horsepower type machine is equipped with the famous Chinese famous brand YunYu front axle, which has high performance and guaranteed quality.

Model

WD1104

Engine

Engine Power/Speed(HP/rpm)

Yuchai Engine 4 cylinders,110HP

Engine Type

4 cylinder, inline, water-cooling, 4 strokes, injection

Fuel Consumption(g/kw.h)

less than 245

Total Displacement(cc)

5910

Fuel Tank Capacity(L)

150

Air Cleaner

Dry, Dual-element

Transmission

No. of Speed

16+8 Creeper

Shuttle

range shift lever(L-R)

Main Clutch

Double

Brake

Hydraulic, Disc.

Differential Lock

Meshing sleeve type gear

PTO

Type

Live-independent, hydraulic PTO with PTO brake, with clutch

PTO Speeds(rpm)

540/760(option 540/1000)

Hydraulics

3 Point Hitch

Adjustable top link and left right rod

Category

II

Control System

Position, draft(option)

Tires Standard

Lift capacity at 24 in behind lift point (kg)

3213

4WD Front/Rear(mm)

13.6-24/16.9-34

Travelling Speed (MAX.)(km/h)

34.9

Other Features

4WD Drive System

Bevel Gear Type

Steering

Hydraulic Power Steering

Flat Board

Flat Board

Dimension &Weight

Overall Length(mm)

4330

Overall Width(mm)

2080

Overall Height(mm)

2870

Wheel Base  Front/Rear(mm)

1620

Ground Clearance (mm)

379

Tractor Weight(kg)   W/O Cabin/Cabin

3800/4100




And in a 20’container, we can put 6 sets inside; in a 40’ container, the quantity will be 12 sets.


JiNan Fangli Group Work Win supply chain co., LTD., located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.

客.jpg1.What's your payment term?

Our payment term is 30% TT in advance, the balance paied off before your goods delivery to port.

2. What's your warrantly?

Our warrantly is one year after your goods delivery.

3. Where is your port?

Our nearest port is Shanghai port.

4. Can you make special stickers?

Yes. We can make stickers according to you need if you order one container.
