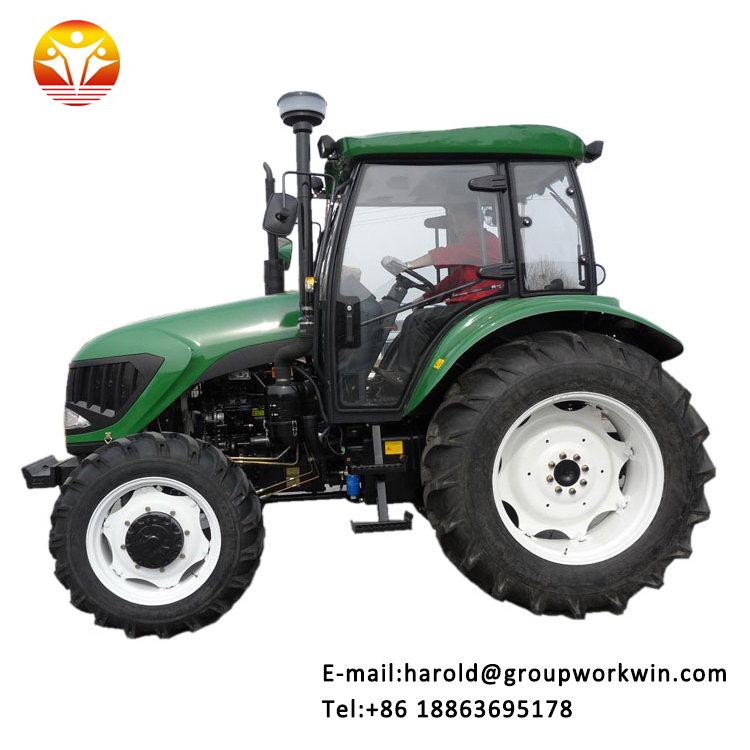

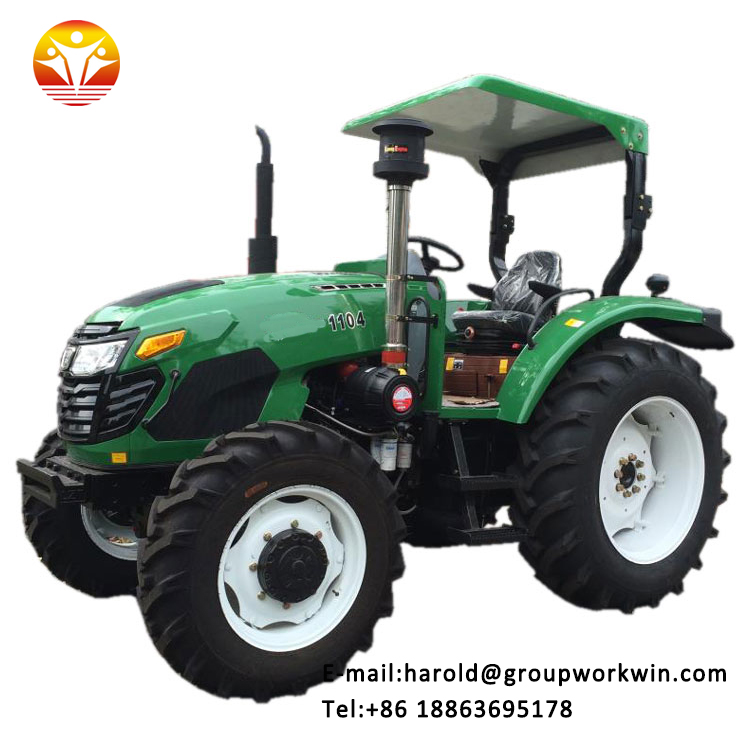

Large power farm tractor 90hp to 100hp 4wd with agricultural implements
Product Description
* Adopt the high quality 4 cylinder diesel engine, with the large torque and high efficiency.
* Use the F10+R10 gear shift and due-stage clutch, hydraulic steering.
* Power lifting device and promote the high working efficiency.
* Adopt the stronger chassis and with the high ground clearance and reliable performance.
* Install the totally enclosed comforable cabin, good sealing and low noise.
Specification
| Model | QLN904 | |||||
| Drive type | 4*4 | |||||
| Engine | ||||||
| Engine model | LR4M5-23 | |||||
| Capacity of fuel tank(L) | 150 | |||||
| Rated speed (r/min) | 2300 | |||||
| Engine power (kw) | 66.2 | |||||
| rated fuel consumption (g/kw·h) | ≤242 | |||||
| Transmission | ||||||
| Clutch | Single,dry,plate spring pressed,independent,dual stage | |||||
| PTO Speed(rpm) | 760/1000 | |||||
| Gearshift | F16+R8 | |||||
| Hydraulic system | ||||||
| Hydraulic output valve | Two group | |||||
| Three point linkage | ||||||
| Category of 3-point link | Category II | |||||
| Lifting capacity(at point of 610mm)KN | ≥15.9 | |||||
| Technical parameter | ||||||
| Dimension (L*W*H) mm | 4280*2085*2815 | |||||
| Wheel base(mm) | 2195 | |||||
| Track base(mm) front wheel | 1610 | |||||
| Track base(mm) rear wheel | 1620~2020 | |||||
| The smallest clearance(mm) | 370 | |||||
| Front tyre | 11.2-24 | |||||
| Rear tyre | 16.9-34 | |||||
Packaging & Delivery
1. Packing terms:
unit 90hp 4wd farm tractor without cabin loaded by a 20'GP container.
units 90hp 4wd farm tractor without cabin loaded by a 40'GP container.
units 90hp 4wd farm tractor with cabin loaded by a 40'HQ container.
2.Port: Qingdao, Shanghai, Lianyungang and so on.
3.Delivery time: 25-30 days after receive the payment.

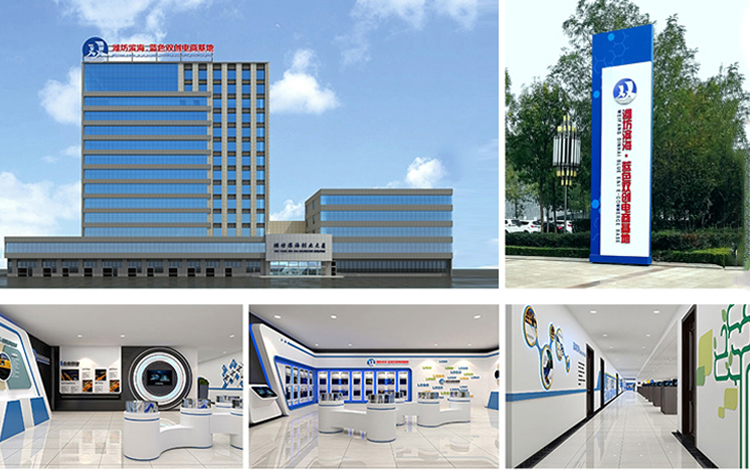

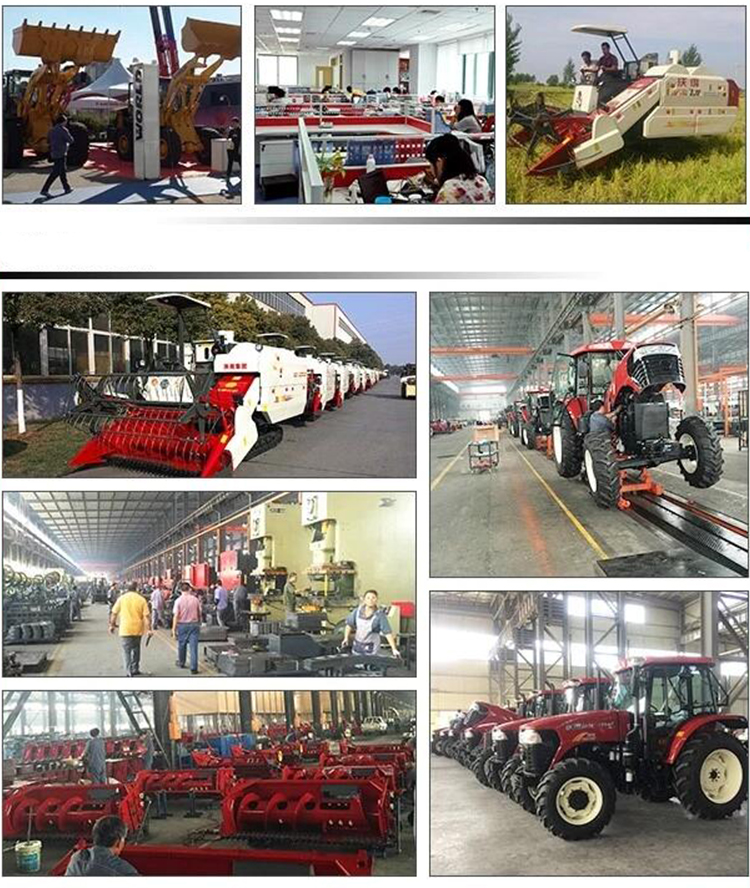

Our Company
Feicheng Haochuang Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural machinery products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
FAQ
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.what are your products?
Our products contain walking tractor 10-18 hp, farm tractor 25-220 hp ,harvester and matched agricultural implements.
4.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
5.When do you ship after payment?
Within 15 to 20 working days after delivery.
