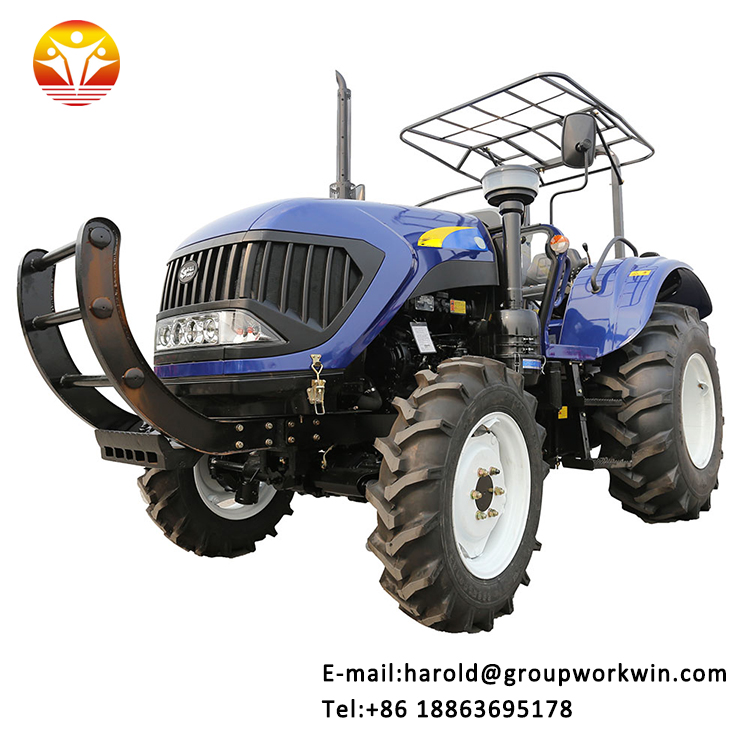

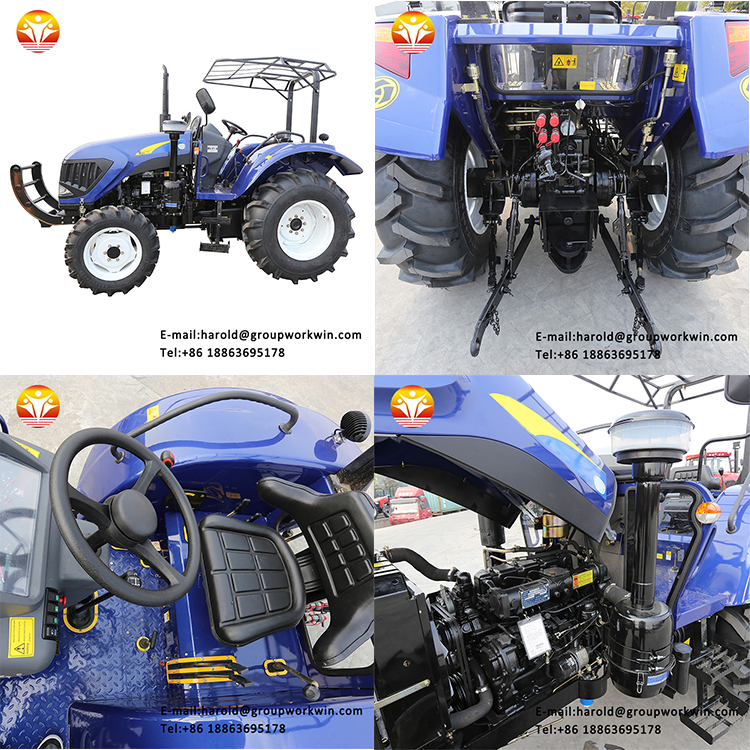

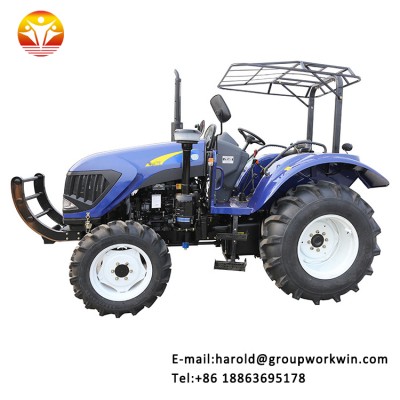

Hot Sell 90HP Large Size Tractor Farm Machines
Product Description
The series tractor is versatile,high-horsepower agricultural tractors, the model has compact structure, convenient operation,flexible steering, traction, versatile and easy maintenance Characteristics,the series use the TD Chassis,4 wheel drive,16F+8R gear box,Hydraulic steering,double clutch, and the 3-point linkage is adjustable by floating way.the series can choose to equip the roll bar, hydraulic multi-valves,heater and AC cabin.
Specification
Model | Map904 |
Drive type | 4x4 |
Engine | |
Engine model | LR4M5-23, YTO, diesel engine, 4 cylinder,in-line, direct injection |
Capacity of fuel tank(L) | 150 |
Rated speed (r/min) | 2300 |
Engine power (kw) | 66.2 |
Lowest fuel consumption (g/kw·h) | ≤242 |
Transmission | |
Clutch | Dry,dual-stage type |
PTO Speed(rpm) | 540/1000 or 760/1000(optional) |
Gearshift | 8F+4R |

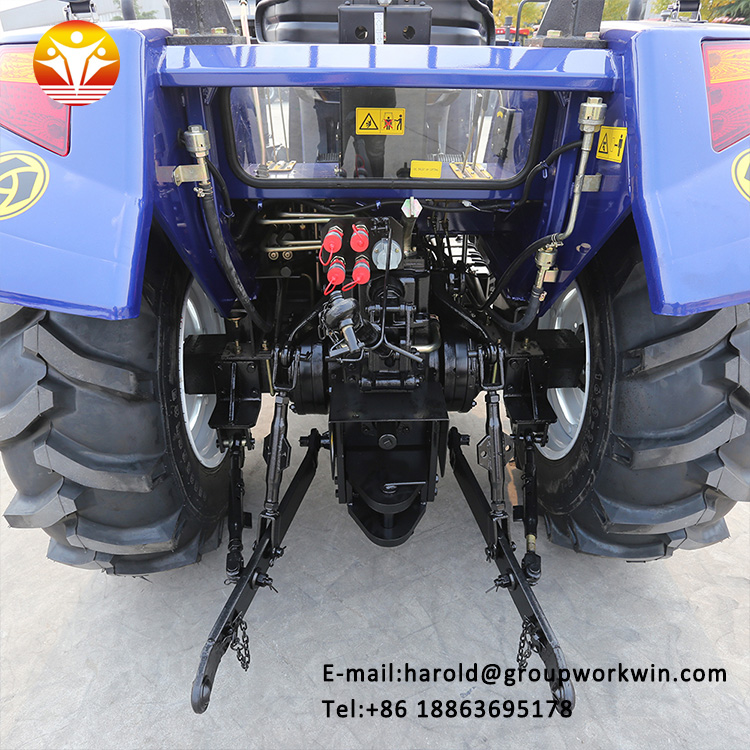

Three point linkage | |
Category of 3-point link | Rear,Cagetory II |
Lifting capacity(at point | >16 |
Technical parameter | |
Dimension(with cabin) LxWxH mm | 3700x2250x2700 |
Dimension(without cabin) LxWxH mm | 3700x2250x2100 |
Wheel base(mm) | 2195 |
Track base(mm) front wheel | 1610 |
Track base(mm) rear wheel | 1620-2020(usual 1620) |
The smallest clearance(mm) | 379 |
Front tyre | 11.2-24 |
Rear tyre | 16.9-34 |
Packaging & Delivery

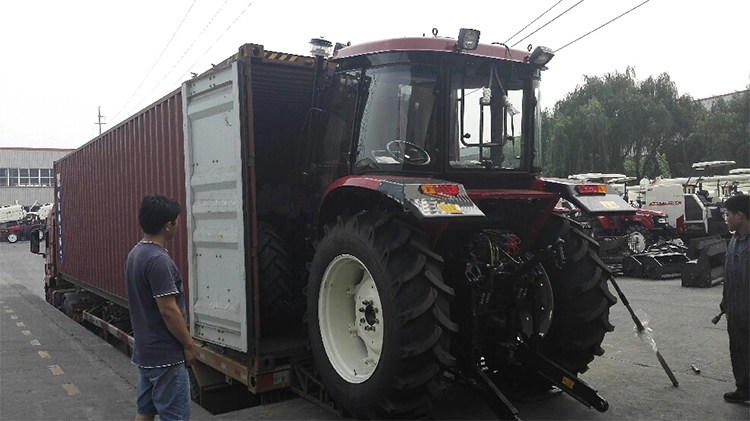

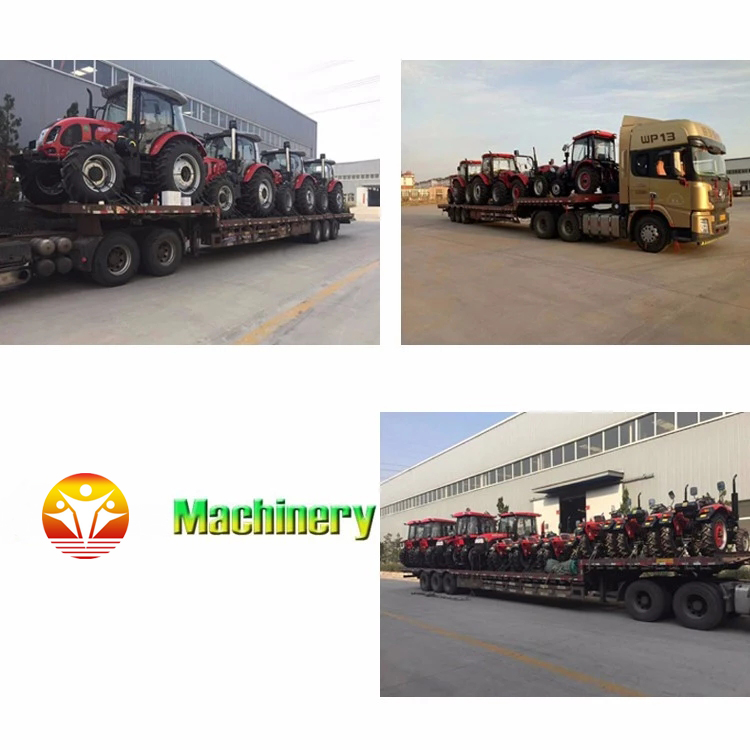

1. Packaging Details: Completed package 40HQ container can load 2 units.
2. Shipping time: 15-20 days after received your advance payment.
Our Company

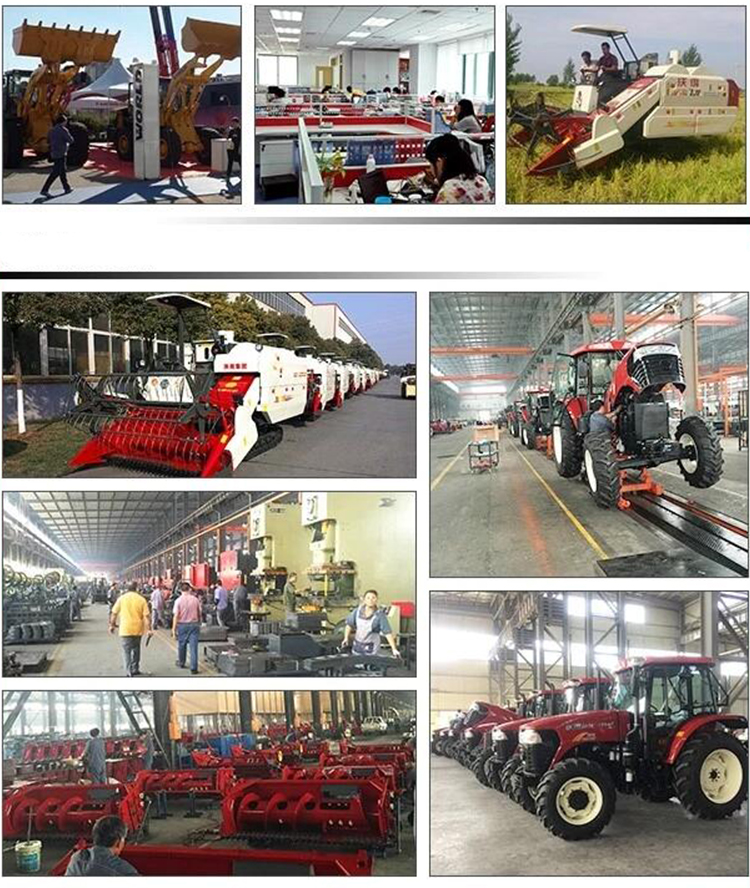

Feicheng Haochuang Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural machinery products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
FAQ
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.what are your products?
Our products contain walking tractor 10-18 hp, farm tractor 25-220 hp ,harvester and matched agricultural implements.
4.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
5.When do you ship after payment?
Within 15 to 20 working days after delivery.
