90hp 100hp 110hp 120hp 4WD Large Farm Tractor With AC Cabin
90hp 100hp 110hp 120hp 4WD Large Farm Tractor With AC Cabin
FOB Price:
US $16,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Port:
Qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
groupworkwin
Model Number:
Large tractor
Packaging & Delivery
The normal package is in iron frame or plywooden case packing
Product Description

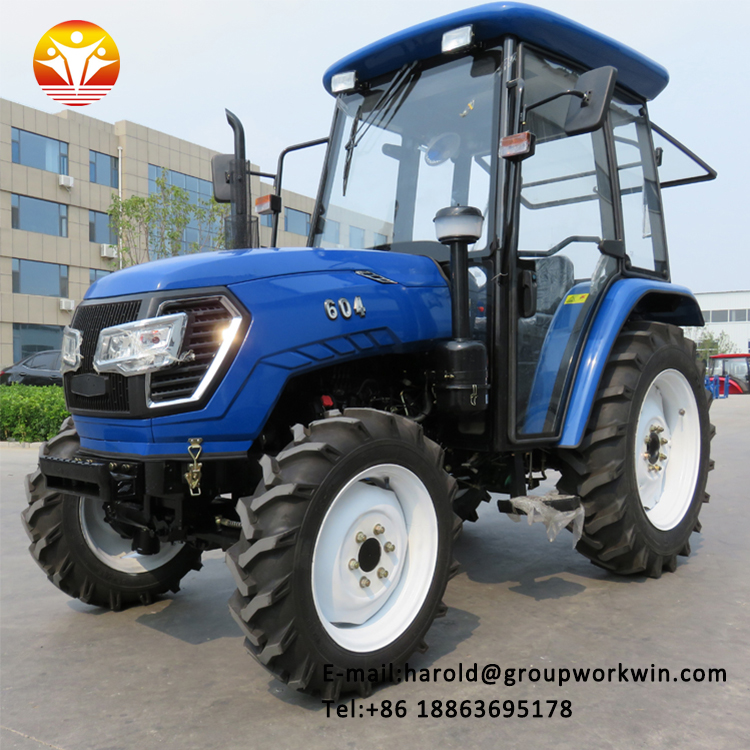

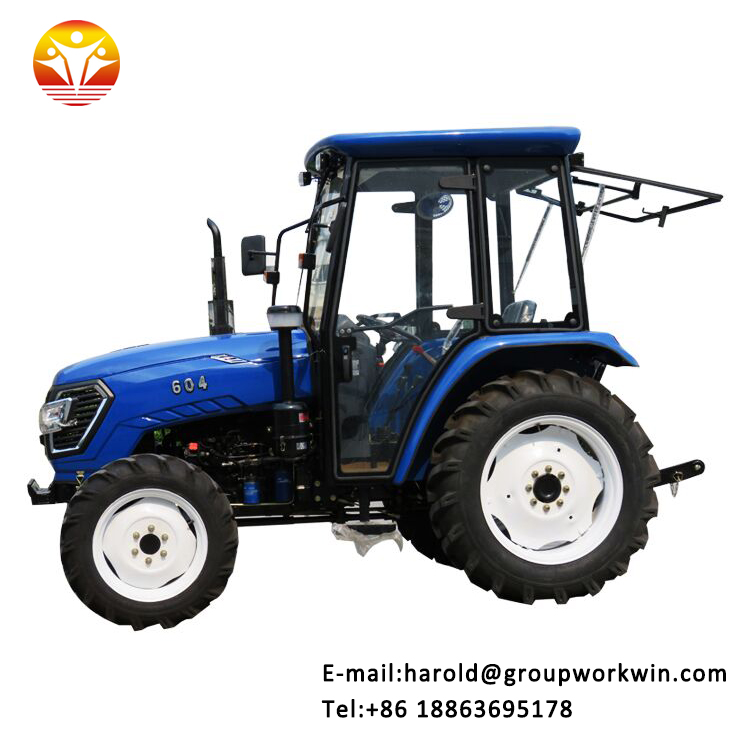

90hp 100hp 110hp 120hp 4WD Large Farm Tractor With AC Cabin



Product Description

1.Lawn large garden tractors are powered with the famous YTO/YUCHAI brand engine , Vertical Water Cool 4-stroke and 4 cylinder. It offers high performance, low fuel consumption and vibration noise.

2, Double action clutch of cheap large power garden tractors is installed for independent operation.

3,Full hydraulic steering system of multifunction large tractors adopt smaller turning radius, being flexible and reliable.

4,Combination 4×(2+1)×2 gear box of agricultural tractors has 16 forward gears and 8 backward gears for easy operation and higher efficiency.




Specification

ModelQLN-900/904
DimensionsLength×Width×Height(mm)4280×2085×2925
Wheel Tread(mm)Front Wheel(mm)

1610—1820(4WD)

1520—1820(2WD)

Rear  Wheel(mm)1620—2020
Min.Ground Clearance(mm)370—450
Dry MassWith Cab(kg)3635(2WD)  3785(4WD)
Without Cab(kg)3420(2WD)  3570(4WD)
EngineTrade Mark or BrandYTO/YUCHAI
Engine ModelVertical Water Cooled 4-stroke
Directly Injection
Number of Cylinder4
Cooling System TypeWater Cooled
Rated Power(kw)66.2KW
Max. Torsion(N.M)360
Rated Speed(r/min)2300 or 2400
Fuel TankVolume(L)150
Transmission SystemClutchSingle,Dry,Dual Stage Type
Gear BoxF16+R8/F16+R8(creeper gear)
DifferentialClosed 4-planetary Gears
Differential LockMechanical Sliding Sleeve
Braking SystemWet Double Plate Disc Brake
Running SystemTyre ModelF/R(2WD)6.5—20/16.9—34
F/R(4WD)11.2—24/16.9—34
Steering SystemHydraulic Wheel Steering
Working DeviceHydraulic System TypePositive lifter
Linkage TypeII Rear Mount 3-point Linkage
PTO(Standard)φ38,8teeth φ35,6teeth
PTO Speed(r/min)540/1000
Drawbar TypeFixed Drawbar/Swing Drawbar


Packaging & Delivery

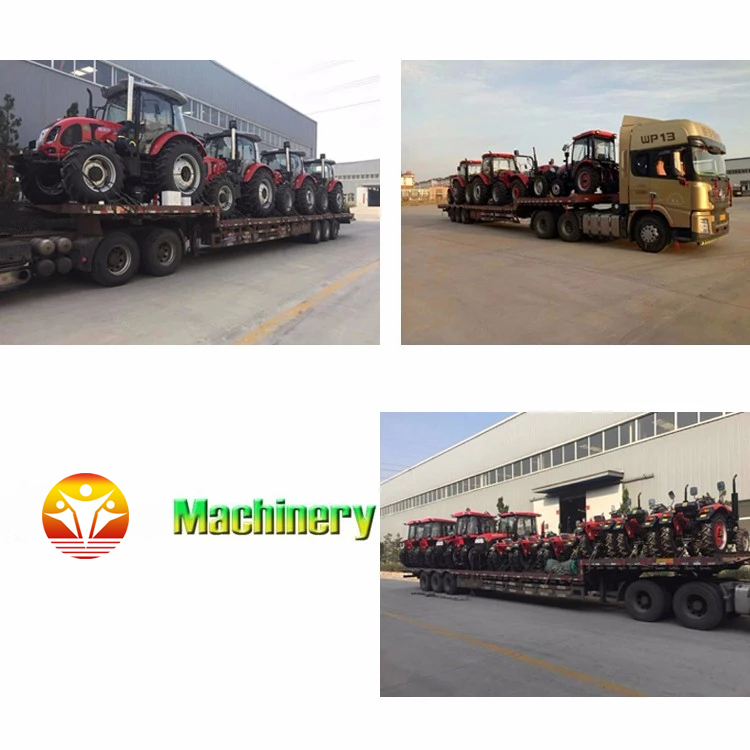

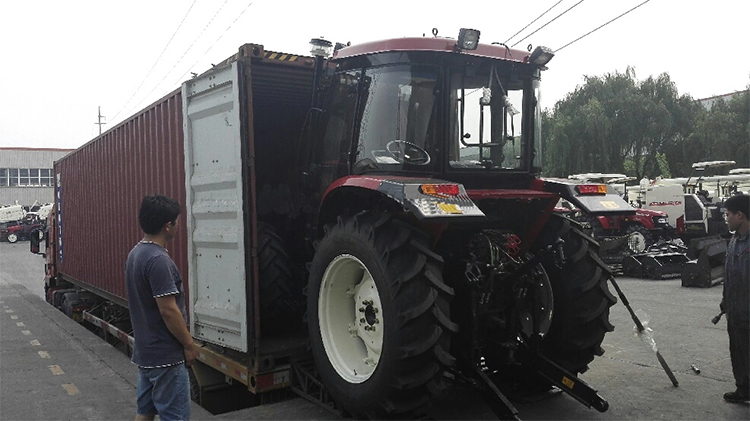

Tractors: normally nude packed, or iron frame packed, customer’s required methods also available. When packing, if your tractor is without cabin and safety frame, tractor funnel can be taken off to lower the overall height, in this case, tractors under 120hp can be loaded in 20GP, that means both of us can save some cost on sea freight.




Our Company

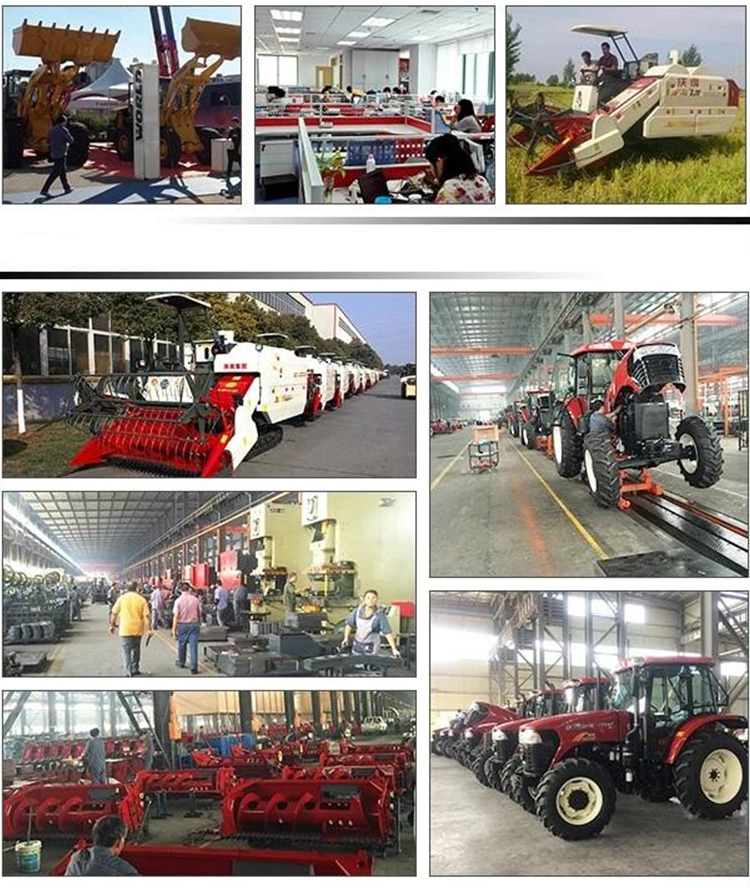

Feicheng Haochuang Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural machinery products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.




FAQ

1.Are you tractor supplier or manufacturer?

We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.

2.Can you supply tractor farm implements?

We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.

3.what are your products?

Our products contain walking tractor 10-18 hp, farm tractor 25-220 hp ,harvester and matched agricultural implements.

4.What's your payment method?

Support L/C,D/A,D/P,T/T,and other secure payment.

5.When do you ship after payment?

Within 15 to 20 working days after delivery.
