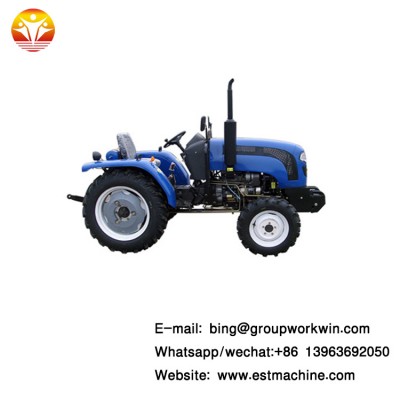

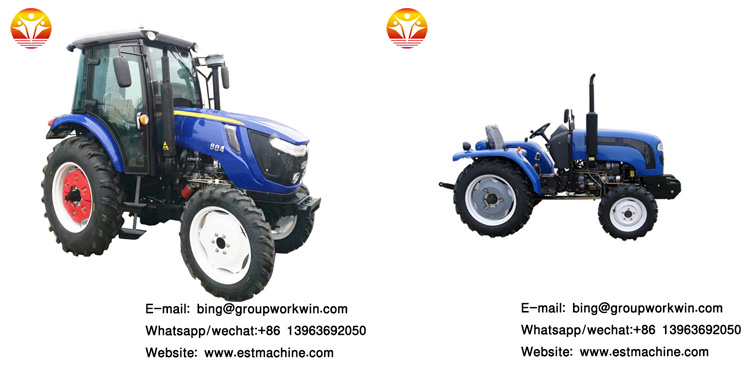

4x4 garden/agriculture high quality/mini tractor /20-150 hp tractor cheap price
HL tractor with a compact, good starting performance, flexible and easy to operate. Engine torque rise, low noise, emissions to the country 2 emission requirements, in line with national environmental emissions requirements. Standard 9 forward gears and thre backward gear, optional synchronizer shift, do not stop can smoothly shift, more portable and efficient operation, can meet a variety of complex agronomic requirements. Front axle symmetrically designed, 52-degree steering angle, steering flexible, the minimum turning radius ≤4.3 m.
Product Description
Main Technical specifications | |||||||
Model | tractor 354 | tractor 404 | tractor 454 | ||||
Type | 4*4 Wheeled Type,4WD | ||||||
Dimension of tracctor(mm) | Length | 3455 | |||||
Width | 1515 | ||||||
Height | 2040 | ||||||
Front wheel | 960,1220(usual) | 1250 | |||||
Rear Wheel | 960,1160,1200(usual) | 1200,1300(usual)1400 | |||||
Wheel Base | 1835 | 2010 | |||||
Mini. Ground clearance | 320 the bottom of front axle | 325 the bottom of steering tie rod | |||||
Min Usage Mass(KG) | 1700 | 2160 | |||||
Engine | model | 4L22BT | ZN490BT | A495BT | |||
type | Vertical,water cooled and 4-stroke | ||||||
Rated power(kw) | 25.7 | 29.4 | 33.1 | ||||
Rated Rev.(r/Min) | 2350 | 2300 | 2400 | ||||
Fuel | Disel | ||||||
Tire | Front wheel | 6.50-16 | 8.3-20 | ||||
Rear Wheel | 11.2-24 | 12.4-28 | |||||
Clutch | Dry-friction,single disc,Dual-stage and constant engagement | Dry-friction,single disc,Dual-stage | |||||
Steering | Hydraulic Power Sreering | ||||||
Transmission | (4+1)*2 Composed | 4*(2+1) Composed | |||||
Hitching Type | Rear mounted,3-point linkage | ||||||
PTO | Type and Rev. | Rear mounted,semi-independent,540/760 or 540/1000 | |||||
Spline Size | 135 rectangle Spline with 6 teeth | ||||||
Main Features
Strong power, good performance
Matching 45 horsepower domestic famous national three engines, emission upgrade, low fuel consumption, large torque reserve and strong power.
It adopts double-acting clutch and adopts 8+2 gears. It can be equipped with 8+8 shuttle shifting, crawling gear and side shifting. The speed matching is reasonable and the working efficiency is high.
Two-speed power output, 540/760r/min and 540/1000r/min can be selected according to the operation requirements.
Reinforced medium-mounted cylinder front drive axle with high ground clearance and strong bearing capacity.
Hydraulic independent oil supply, full hydraulic independent steering, small turning radius.
