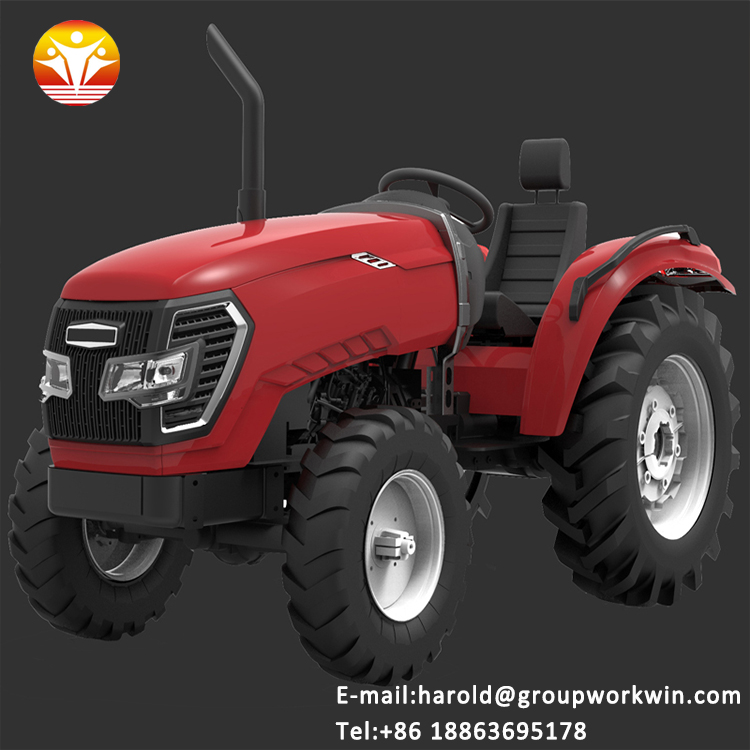

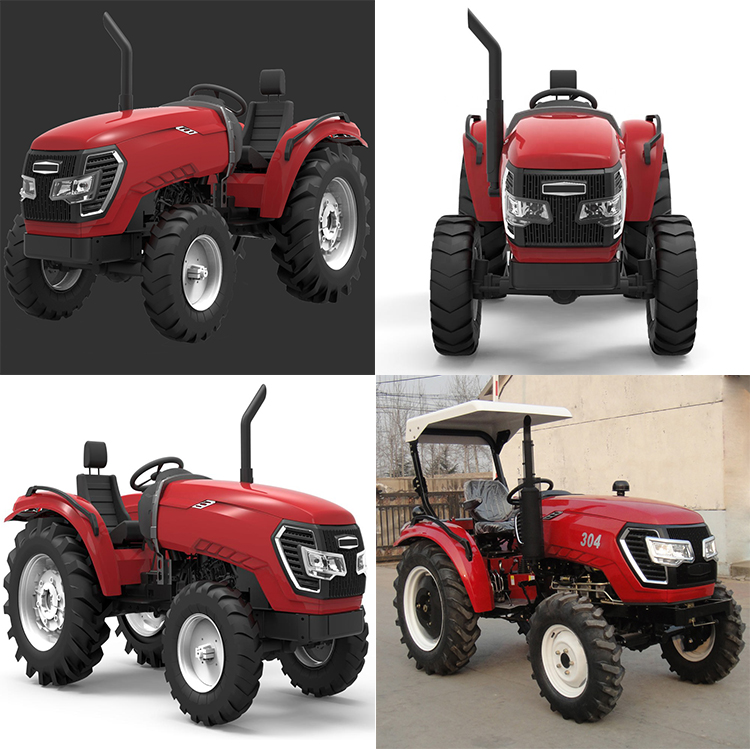

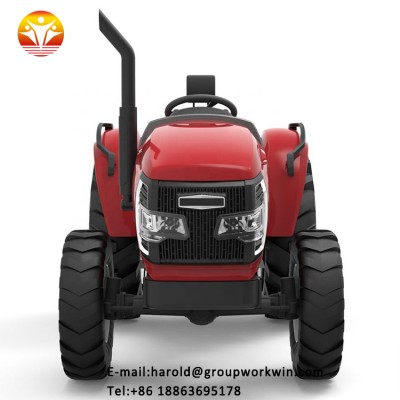

China NEW farming tractor 304 30HP 4WD with ROPS
China NEW farming tractor 304 30HP 4WD with ROPS
FOB Price:
US $8,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
group work win
Model Number:
tractor 30HP 4WD
Packaging & Delivery
1 units loaded by a 20'GP container.

3 units loaded by a 40'HQ container.
Product Description



China NEW farming tractor 304 30HP 4WD with ROPS




Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.





1. Adopting Laidong diesel engine, good reliability, large torque reserve, low fuel consumption;
2. Single or double clutch optional, high transfer ability, reliable effect, operation more comfortable;
3. Gear box use 8+2, gear are reasonable, high working efficiency;
4. Power output device, steady transmission, revolving speed 540/720 can choose, meet the complex requirements;
5. Using hydraulic steering system (optional), flexible operation, reliable energy saving;
6. New streamlined appearance, greaceful, fashion.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.




Model

304

Type

4X4

Overall dimension (mm)

Length

3150

Width

1450

High

2030

Wheelbase (mm)

1715

Front wheel tread (mm)

960, 1220 (usual)

Rear wheel tread (mm)

960, 1160 (usual), 1200, 1300

Min. ground clearance (mm)

360

Min. using mass(kg)

1400

Gear box

8+2

Engine

Model

Laidong KM3T30

Type

Vertical, water cooled and 4-stroke

Rated Power (kw)

22.1

Rated Rev. (r/min)

2300

Tyre type

Front Wheel

6.00-16

Rear Wheel

9.50-24 /11.2-24

Steering system type

Hydraulic steering

Clutch

Dry-friction, single stage or double stage

Suspension type

Post positioned tri-point suspension, catalogue Ⅰ

PTO speed (r/min)

540/720

PTO spline size

I35 Rectangle Spline with 6 teeth

* The parameter shall be subject to any change without addtional notice.






Shouguang Yangkou Group Work Win Co.Ltd.

is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments,

and accessories.

Our main product lines: tractor series, agricultural cultivating machinery series, spraying series, harvesting machinery series, post-processing machinery series, casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO),

and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)
We have a multilingual team, and many big branch factories. A regional market presence-including southeast

Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support.

We aim to supply better quality products and after-sales service.




1.Your inquiry related to our products or prices will be replied in 12hours.

2.Well-trained and experienced staffs to answer your enquires in fluent English.

3.All our products have high quality warranties.

4.Sample order can be delivered within 3 working days, small order 3- 5working days, mass order 7-10working days.

5.Samples can be offered by free,customers just need to pay the freight.But the freight can be
