704E Tractor 70HP 4WD with heater cabin
704E Tractor 70HP 4WD with heater cabin
FOB Price:
US $10,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
group work win
Model Number:
704 tractor
Packaging & Delivery
In nude / in iron frame
Product Description

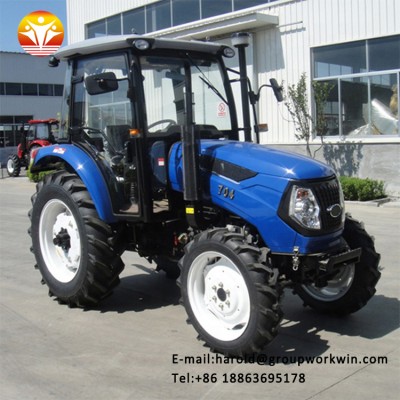

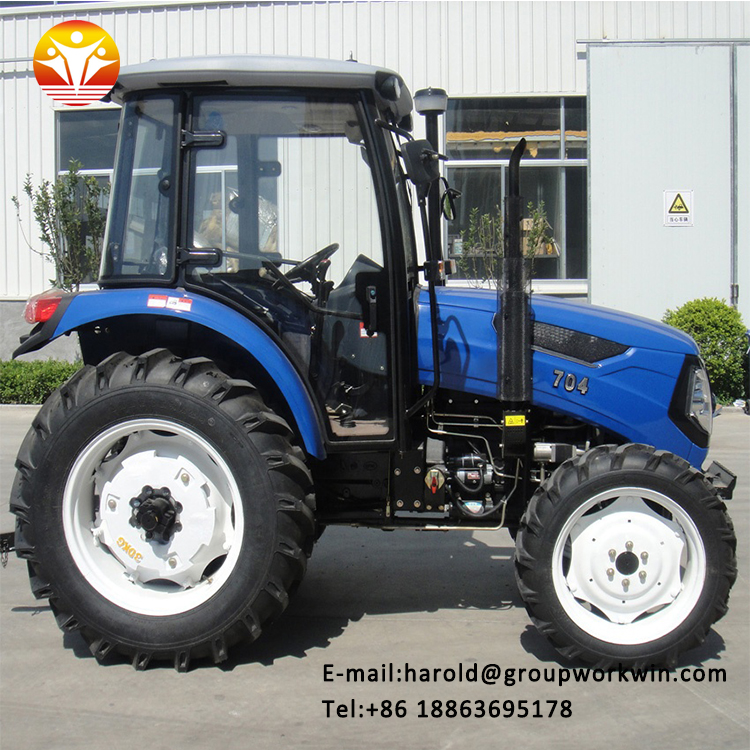

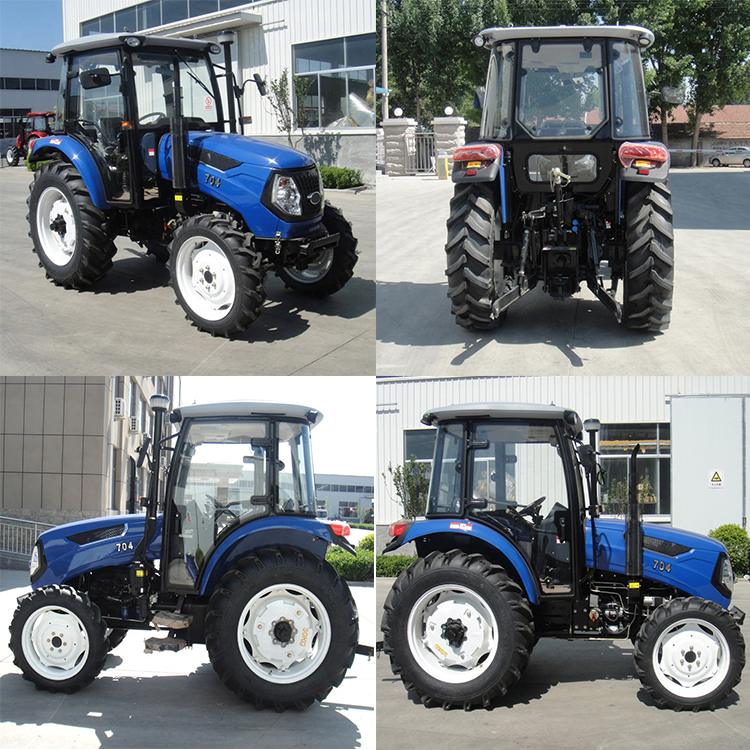

704E Tractor 70HP 4WD with heater cabin



704 3.jpg

Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.


704 5.jpg




Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices. The engine power is transmitted from the transmission system to the driving wheel, which makes the tractor run. In real life, rubber belt is commonly used as the power transmission medium.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.



Model

704E

Type

4×4

Overall dimension (mm)

Length

3700

Width

1710

High

2360

Wheelbase (mm)

2200

Front wheel tread (mm)

1300

Rear wheel tread (mm)

1200/ 1300(usual)/ 1400

Min.ground clearance (mm)

390(the bottom of steering horizontal pulling rod)

Min.using mass (kg)

2300

Gear box

12F+12R

Engine

Model

Quanchai4108

Type

Vertical, water cooled and 4-stroke

Rated Power(kw)

51.4

Rated Rev.(r/min)

2400

Fuel

Diesel Oil

Tyre type

Front tyre

8.3-24

Rear tyre

14.9-30

Clutch

dry-friction, single disc and two stage

Steering

Hydraulic type

Transmission Box

two shafts, 4×(3+3) composed

Suspension Type

Post Positioned Tri-point Suspension Catalogue Ⅰ

PTO

Type and Rev.(r/min)

Post-position, independent, 540/760 or 540/1000 (Optional)

Spline Size

I38 Rectangle Spline with 8 teeth
