High quality 404 Farm tractor roller tractor
High quality 404 Farm tractor roller tractor
FOB Price:
US $20,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
group work win
Model Number:
404tractor
Packaging & Delivery
container
Product Description

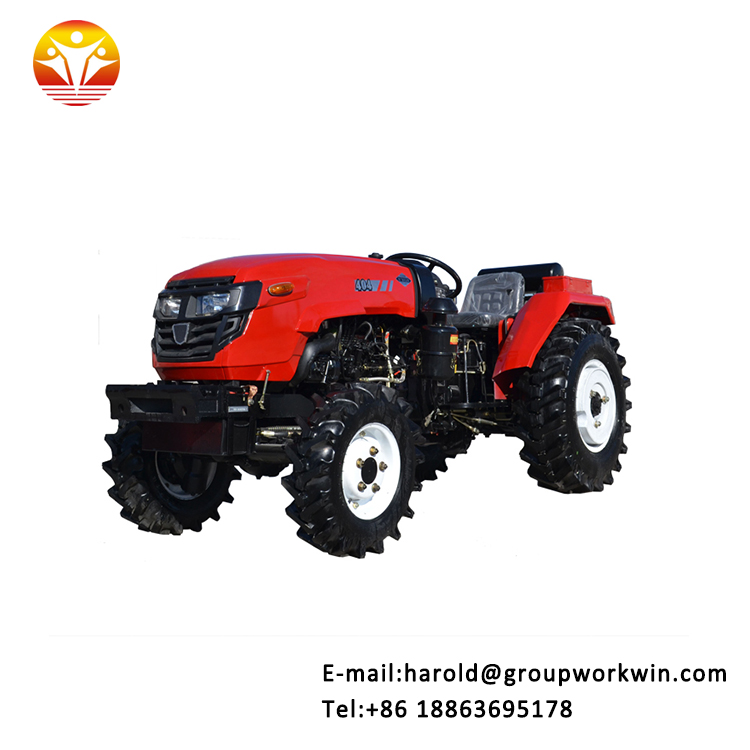

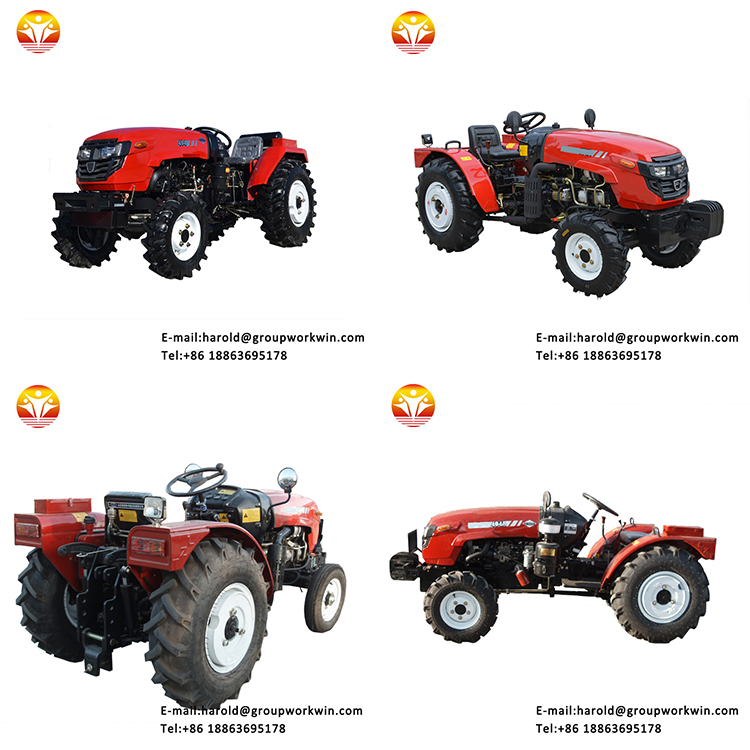

High quality 404 Farm tractor roller tractor



tractor lv.jpg

Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.


luzhong tractor.jpg



Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices. The engine power is transmitted from the transmission system to the driving wheel, which makes the tractor run. In real life, rubber belt is commonly used as the power transmission medium.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.






Model

LZ254

Type

4WD    Wheeled Type

(mm)Dimensions of Tractor

Length (to front ballast)

3030

Width

1470

Height (to the exhaust vent)

1900

Tread

Front Wheel

1215 Fixed or 1150~1215 Adjusted

Rear Wheel

1300 Fixed or 1300~1350 Adjusted

Axle Base

1710

Min.Ground Clearance

347.5

Structure weight (kg)

1130

Ballast weight
(kg)

Front ballast

56

Rear ballast

112

Rated traction force (kg)

551

Engine

Model

385

Type

Vertical,3-Cylinder,Water Cooled and 4-stroke

Rated Power(kw)

18.3

Rated speed (r/min)

2400

Fuel

Diesel

Tyre

Front Wheel

6.00-14

Rear Wheel

9.5-24

Clutch

Dual-stage clutch

Steering

power steering

Transmission Type

8+2 or 8+8 with shuttle gearshift or 16+4 with creeper shift

Suspension Type

3-point links

PTO

Type and Rev

Semi-independent Type 540/1000

Spline Size

F35 Rectangle Spline with 6 teeth

Structure and specification are subject to change without notice.





Shouguang Yangkou Group Work Win Co.Ltd.

is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments,

and accessories.

Our main product lines: tractor series, agricultural cultivating machinery series, spraying series, harvesting machinery series, post-processing machinery series, casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO),

and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)
We have a multilingual team, and many big branch factories. A regional market presence-including southeast

Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support.

We aim to supply better quality products and after-sales service.




1.Your inquiry related to our products or prices will be replied in 12hours.

2.Well-trained and experienced staffs to answer your enquires in fluent English.

3.All our products have high quality warranties.

4.Sample order can be delivered within 3 working days, small order 3- 5working days, mass order 7-10working days.

5.Samples can be offered by free,customers just need to pay the freight.But the freight can be


1.Q:What are your advantages compared with others?

   A:1.competitive technology-we are as the leading dealers of various China machinery manufactures.

      2.competitive service-Our company has good maintenance team,we can provide best service everytime and everywhere.

      3.fast delivery-It  will take about 15 days for factories to produce  the ordered products.

     4.competitive service- we often have an negotation from numerous comparison and feedbacks from clients,our price is more competitive than others.

2.Q:How can i believe you and your factory?

    A:Since it is not the little thing to purchase machine,you can come to China to visit us for an inspect,and we will welcome you enthusiasm.so we can establish good cooperation with each other.

3.Q:How long of the warranty period ?

   A:1year

4.Q:How about delivery?

   A:delivery:7-10 working days after payment
      packing:
   A:container or RORO ship
   B:Nude package or according customers requirements
     better shipping is chosen for you accordingly.
