1lyq (T) -525/Strong Rake /Small Resistance /5-Discs Disc Plough
1lyq (T) -525/Strong Rake /Small Resistance /5-Discs Disc Plough
FOB Price:
US $800.000 / Pieces
Min.Order:
0 Pieces/Pieces
Supply Ability:
8000 Pieces/Pieces per Month
Port:
qingdaogang
Email:
Quantity:
Pieces
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
zhiyan
Model Number:
1lyq (T) -525
Packaging & Delivery
Model WorkingWidth (m) Total weight(kg) WorkingDepth(mm) Matched Power(hp) No.of disc Linkage
1LYQ(T)-220 0.4 150 200 ≥18 2 Three-point mounted
1LYQ(T)-315 0.45 180 180 ≥25 3
1LYQ(T)-320 0.6 190(200) 200 25-40 3
1LYQ(T)-325 0.75 420(430) 250 ≥50 3
1LYQ(T)-330 0.9 470 300 70 3
1LYQ(T)-425 1.0 480(490) 250 80-100 4
1LYQ(T)-525 1.25 530(560) 250 100-120 5
1LYQ(T)-625 1.5 570(600) 250 120-160 6
Product Description

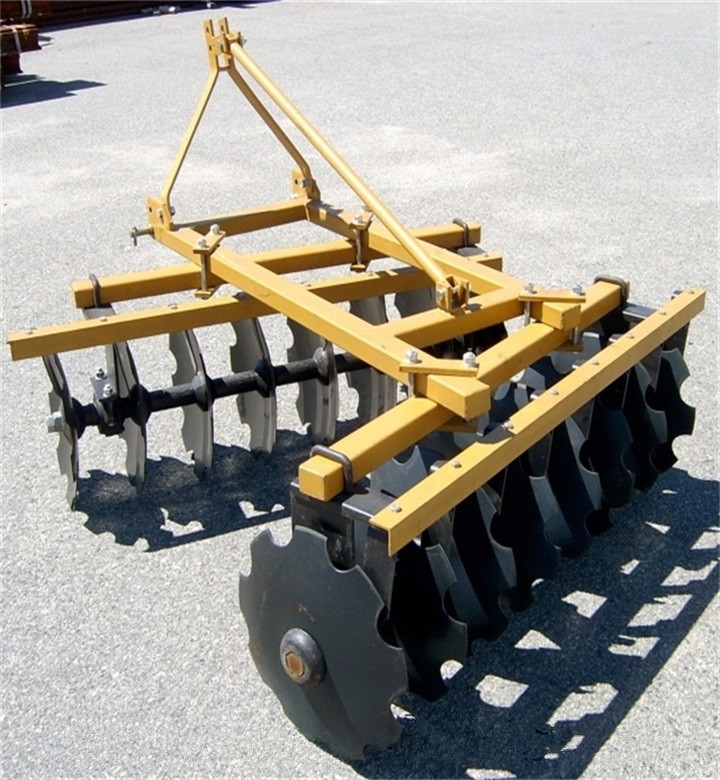

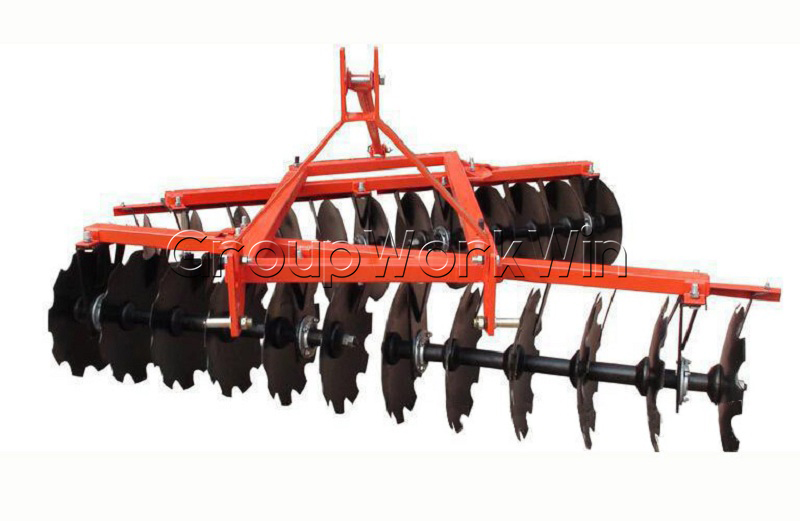

Disc harrow.Taking groups of concave disks as working parts, the blade plane of the rake blade is perpendicular to the ground and has an adjustable Angle with the direction of the unit.During the operation, under the action of tractor traction and soil reaction force, the rake plate rolled forward, the rake blade cut into the soil, cut off the grass roots and crop stubble, and made the soil fall down after rising a certain height along the concave surface of the rake plate.It can mix fertilizers and pesticides on the surface with topsoil, and is widely used in shallow tillage after crop harvest, soil conservation in early spring, and soil breaking after ploughing, etc. It can also be used for seed covering after plane sowing.According to the configuration of rake set, it can be divided into three types: single row type, double row opposite type and offset type


Model

1BQX-1.1

1BQX-1.3

1BQX-1.5

1BQX-1.7

1BQX-1.9

1BQX-2.3

1BQX-2.7

Working Width (mm)

1.1

1.3

1.5

1.7

1.9

2.3

2.7

Working Depth (mm)

80-140

Qty. of Disc(pcs)

12

14

16

18

20

24

28

Size of Disc (mm)

460*3

Disc Spacer (mm)

200

Productivity (ha/h)

0.7

0.84

0.97

1.1

1.3

1.5

1.7

Linkage

Three Point Mounted

Matched Power (hp)

12-20

14-25

22-30

30-40

35-45

50-60

55-70


Main Features

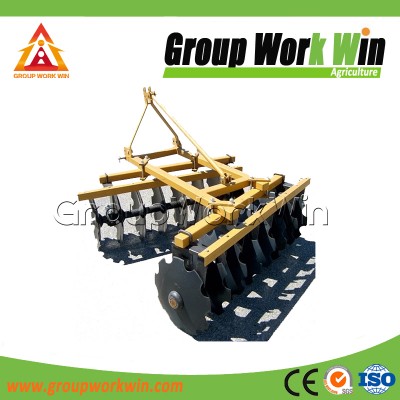

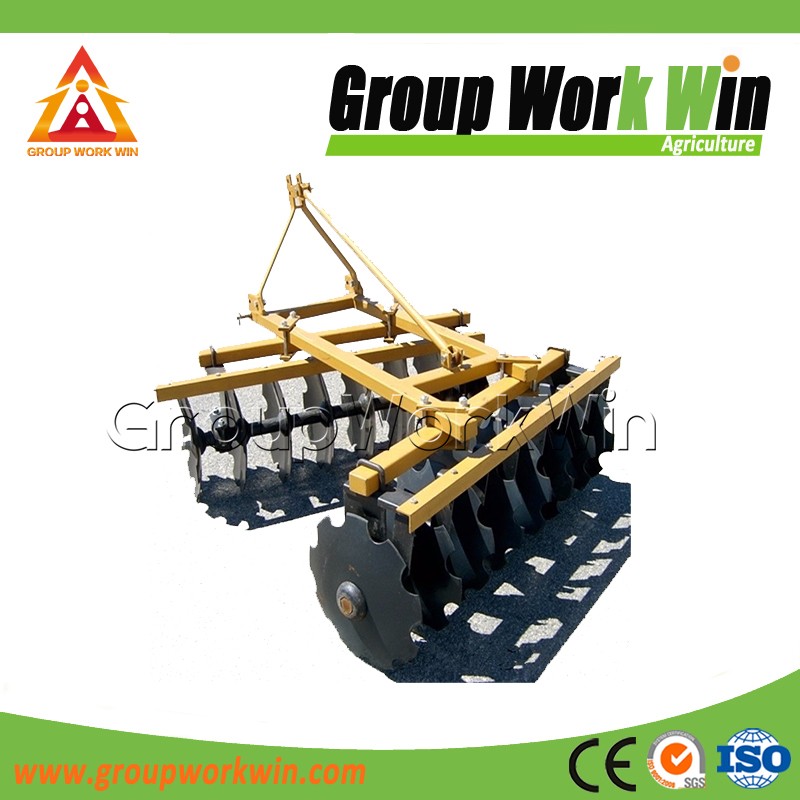

The 1BQX series mounted light-duty disc harrow is suitable for pulverizing, loosening clods after ploughing and planning the land before sowing on cultivated land. It could be used with tractor from 12hp to 80hp.


Package and Delivery

Packaging Mode: Iron frame, iron crate or customized.

Delivery Time: within 15-25 working days after payment.

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.

Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


Contact information

Bing Zhou (Sales Manager)

E-mail: bing@groupworkwin.com

Whatsapp/wechat:+86 13963692050

Website: www.estmachine.com

Weifang Binhai Group Work Win Co., Ltd.


Q1: How about your company?

A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.

Q2: What is the MOQ?

A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.

Q3: What is the delivery time?

A3: 15-20 working days after payment.

Q4: About the package?

A4: Iron frame or iron crate.

Q5: Can I put my brand name on your agricultural machines instead of your brand name?

A5: Yes. We could do OEM/OBM.

Q6: What about the payment terms?

A6: T/T. We also can accept other payment terms.

Q7: Can we mix different models together?

A7: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
