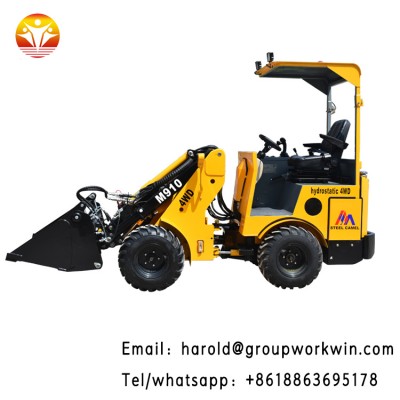

wheel tractor with front end loader and backhoe
Description
♦Standard level lift.
♦ Perfect painting and finishing in details.
♦ Special requests on the the size of bucket are available
♦ Quick release bracket and it is very easy for installation.
♦ Quick release attachment which can work with others Extensive implements

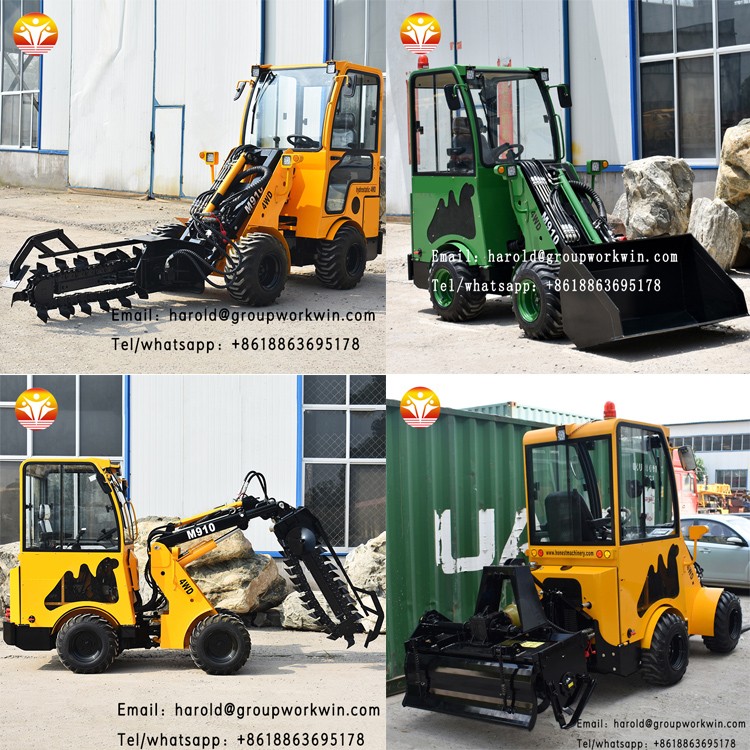

♦ 4 in 1 bucket, pallet fork and wood Grapple are available on it.
Specification
Model | TZ03D | TZ04D | TZ06D | TZ08-10D |
Matching tractor | 25-30hp | 35-55hp | 60-80hp | 85-130hp |
Max lift height of measured atarm pivot point (A) | 2360 | 2700 | 3100 | 3080 |
Max.dump height (C) | 1800 | 2000 | 2300 | 2350 |
Dump distance(D) | 700 | 900 | 1140 | 1100 |
Dump angle(E)(°) | 45° | 45° | 45° | 43° |
Distance of bucket to the centre of front-wheel(F) | 1820 | 1930 | 2320 | 2400 |
Rollback angle on ground(G)(°) | 32 | 32 | 34 | 33 |
Max. digging depth(H) | 100 | 140 | 140 | 180 |
Bucket width | 1289 | 1482 | 1652 | 1800 |
Bucket capacity (m3) | 0.18 | 0.2 | 0.43 | 0.46 |
Rated lift capacity (Kg) | 300 | 400 | 600 | 1000 |

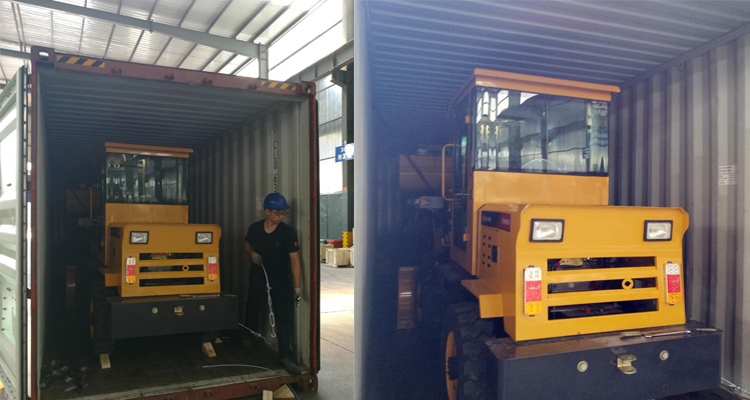

Packing & Delivery
Our Company
Weifang Binhai Group Work Win Supply Chain Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
FAQ
1.Why we choose you?
We are specialized in farm agricultural tractors and implements since 1986. We know what you need, and we can supply a high quality&
