Lutong 4WD 40HP Agricultural Farm Tractor LYH404--Kuiwei GROUP WORK WIN CO., LTD

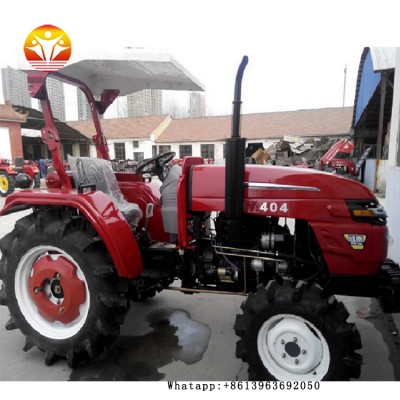

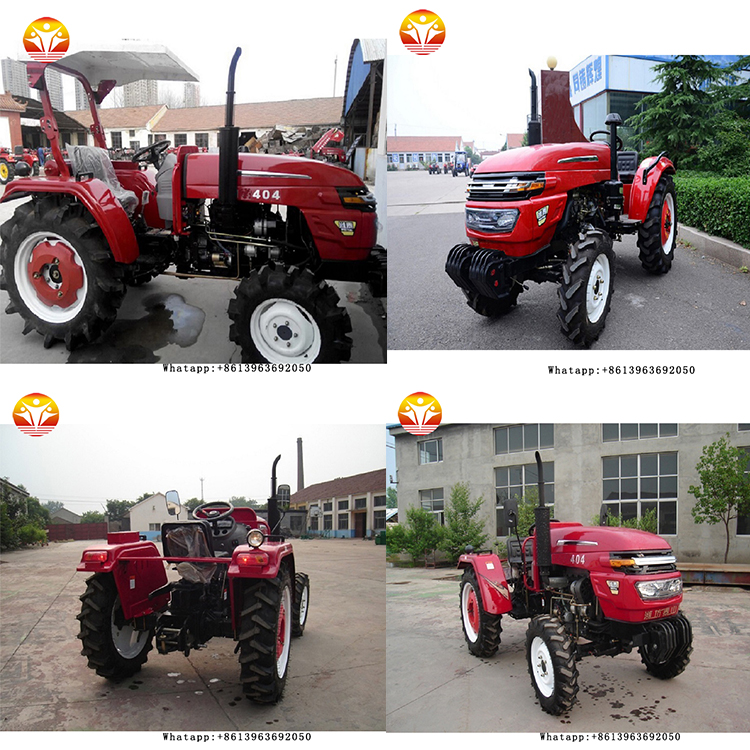

Lutong 4WD 40HP Agricultural Farm Tractor LYH404

Product Description

The main characteristic has: Adopt new Zhejiang firewood diesel , reliability well , has bigger moment of torsion reserve system;

10 inches of pair of effects clutch; The speed change box archives place is 4 X (2 + 1); Detached driving force of postposition exports a device ,

drive balances , bears the weight of a force big; The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour;

The force moment adopt disk brake , braking is big , the braking is reliable; Adopt

Tractor model		LYH404
Pattern		4×2 (four-wheel drive)
Outlook size mm	Long (in front of belt counterweight)	3513
	Width	1823
	High (to air vent)	2130
Spread of axies (mm)		1880
Front wheel tread (mm)		1250
Rear wheel tread (mm)		1200-1500 (commonly used 1300)
Smallest gully (mm)		325
Agronomy gully (mm)		375
Changes radius (mm)	Unilateral brake	3.4
	Unilateral does not apply the brake	4.1
Complete machine quality (kg) Disposition quality (kg)	Structure quality	1890
	Smallest use quality	2080
	First disposes	144
	Latter disposes	360
Fixed force of traction (KN)		12
Engine model		490BT
Demarcation power (KW)		29.4
Coupling		10 inch dry list function or double-acting
Gear box		4× (2 1) keeps off the composition type meshing wrap to shift gea
Speed range		2.4-31.9
Central rotation		Screw round bevel gear pair
Differential device		Two planetary gears, closed type
Differential lock		Plug type
Final transmission		Planet gear type
First driving axle		The entire seal bevel gear type (four-wheel drive type uses)
Transfer case		The straight tooth cylindrical gears (four-wheel drive type uses)
Front wheel tire specification		6.0-16 8.3-20
Trailing wheel tire specification		12.4-28
Diverter pattern		Mechanical or the entire hydraulic pressure changes
Brake labor		Biplate oil bath plate brake (mechanical type)
Hoist pattern		The half minute sets at the type
Ploughs the deep control mode		Strength, position control and fluctuation control
Suspension unit pattern		Postpositioned three point suspension
Dynamic output speed of spindle (r/min)		540/760

Packaging and transportation

Packaging Details

Standard packing for export

Lead Time :10days
