Basic Info
Model NO.: 4LZ-2.0
Application Field: Agriculture
Application: Wheat
Cutting Width: 2.0 M
Product Description

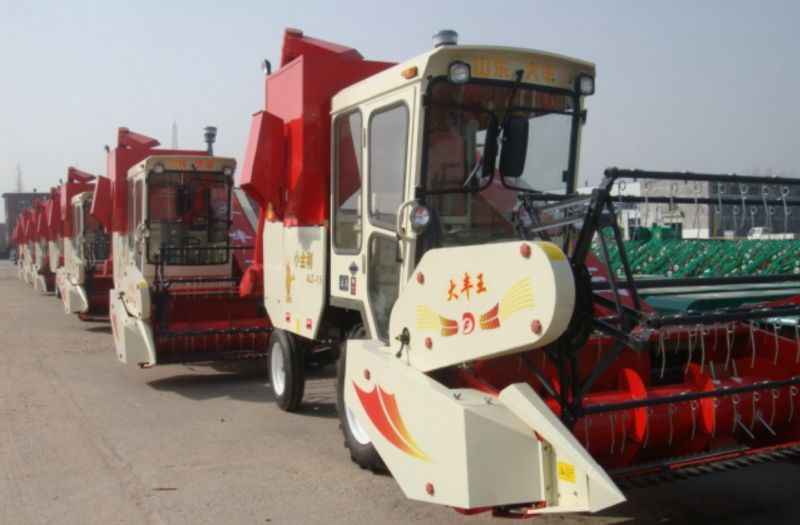

XCMG AGRO Produce the best harvester machines in China.
Main Features:
1. It is specialized for harvesting wheat
2. Adopt Hydraulic steering and runing control , and the Hydraulic control the header lifting
3. 1800mm cutter width is suitable for blockette field
4. Double re-threshing rollers ,the grain is very clean
5. Strong reels and and spring-tooth
| Type | Wheel full feed self-propelled |
| Model | 4LZ-2.0 |
| Cutting Width | 2000 mm |
| Feed | 1.5 Kg/s |
| Running speed | 2.48-16 Km/h |
| Diesel Engine | |
| Model | 4102 |
| Power | 48KW |
| Rotate Speed | 2600Rpm |
| Average Oil Consumption per Hectare | 27<Kg/hm² |
| Working Productivity | 4-6 (0.27-0.4Hec/H) |
| Total Weight | 2800 kg |
| Dimension(L×W×H) | 5800*2400*3000 mm |
| Ground Clearance | 310 mm |
| Header | |
| Reel Type | Spring-tined |
| Reel Diameter | Φ900mm |
| Reel Bat | 5piece |
| Cross auger Type | Screw auger, eccentric extensible link |
| Cross Auger Diameter | Φ500mm |
| Clearance between Auger and Bed Plate | 12-20mm |
| Cutter bar Stroked | 76.2mm |
| Cutter bar Type | Domestic strandard II |
| Conveyer | |
| Type | Flat belt raked tine |
| Width | 400mm |
| Threshing Drum | |
| Type | Transverse Axial Flow |
| Diameter | Φ54mm5 adjustable |
| Length | 1350mm |
| Re-sthreshing Drum | |
| Type | Axial flow cutting plate |
| Diameter | Φ190mm |
| Concave | |
| Type | Grid based |
| Angle | 236.8 degree |
| Separation Area | 1.38m2 |
| Re-threshing Concave | |
| Type | Punch type |
| Separation Area | 0.45m2 |
| Sieves | |
| Type | |
| above sieve | Double sieves + fan + re-threshing |
| bottom sieve | 0.76m2 |
| 0.92m2 | |
| Fan | |
| Type | Low-pressure, volute |
| Diameter | Φ346.8mm |
| Elevator Auger Diameter×Thread Pitch | Φ120×116mm |
| Unloading type | mechanical |
| Tank capacity | 1 m3 |
| Chassis | |
| Type | 4×2 wheeled |
| Front-wheel tread | 1300-1200 mmtwo-stage adjustable |
| Trailing wheel tread | 1290-1210two-stage adjustable |
| Gear box | 3×2+1 |
| Wheelbase | 1985mm |
| Front-wheel Model | 9.5-20 |
| Trailing Wheel Model | 6.0-16 |
| Tire Pressure | Front wheel 0.28Mpa, Reaar wheel 0.36Mpa |
| Oil Tank Capacity | 65L |
| Operator | 1 person |
| Qty'/40HC | 2 sets |
