Basic Info
Model NO.: SH200
Application: Rice
Application Field: Agriculture
Trademark: SH
Origin: Shandong
Type: Horizontal Cut Harvester
Power Source: Diesel
Cutting Width: 200cm
Specification: ISO
HS Code: 84335100
Product Description

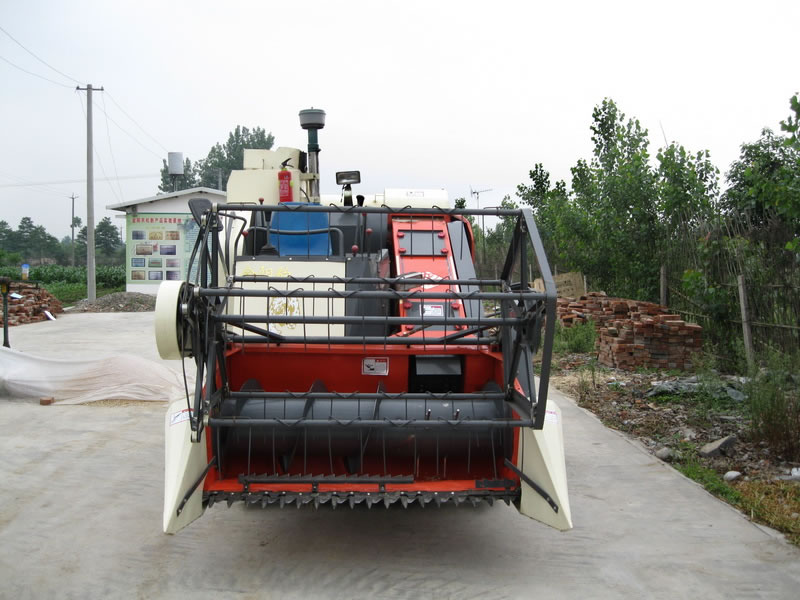

SH200 is a harvester which is designed, producd and tested through long-term study by absorbing the advantages of large and medium sized combine harvesters according to the natural conditions of rice-planting fields in the south of China, agronomic requests and today's economic condition of countryside.
It has advantages of compact construction, light weight, beautiful appearance, easy operation, reliable performance and convenient adjustment and maintenance.
It possesses many items of national patent,
It has passed appraisal of the agricultural ministry and has got the agricultural machinery spread license.
| SPECIFICATIONS OF SH200 COMBINE HARVESTER | ||||
| SQ | ITEM | UNIT | RESPONSES | |
| 1 | MODEL | SH200 | ||
| TYPE | FULL-FEED,TRACK COMBINE | |||
| MODEL | 498BT/BZT/L | |||
| 2 | ENGINE | TYPE | WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL | |
| RATED POWER | KW/HP | 45/61 55/75(TURBOCHARGED ENGINE) | ||
| RATED ROTATION SPEED | R/MIN | 2600 | ||
| FUEL TANK CAPACITY | L | 70 | ||
| 3 | OVERALL DIMENTIONNS | MM | 4550*2350*2300 | |
| 4 | WEIGHT | KG | 2450 | |
| 5 | CUTTING BAR LENGTH | MM | 2000 | |
| 6 | FEEDING CAPACITY | KG/S | 2 | |
| 7 | GROUND CLEARANCE | MM | 240 | |
| 8 | OPERATING SPEED | KM/H | 5 | |
| 9 | HARVESTING CAPACITY | AC/H | 0.99—1.48 | |
| 10 | FUEL CONSUMPTION | KG/H | ≤13.18 | |
| 11 | TYPE OF BLADE | V TYPE/LEFT AND RIGHT | ||
| 12 | TYPE OF CUTTING BAR AUGER | SCREW CONVEYING | ||
| TYPE | TOOTH(OFF-CENTER) | |||
| 13 | REEL | DIAMETER | MM | 900 |
| NOS OF REEL | 5 | |||
| NOS OF CYINDER | 2 | |||
| 14 | THRESHING | TYPE OF MAIN CYLINDER | SPIKED-TOOTH AXIAL FLOW | |
| CYLINDER | TYPE OF ASSISTANT CYLINDER | SPIKED-TOOTH AXIAL FLOW | ||
| SIZE OF MAIN CYLINER | MM | 540*1285(DIAMETER*LENGTH) | ||
| SIZE OF ASSISTANT CYLINDER | 540*650(DIAMETER*LENGTH) | |||
| 15 | TYPE OF CONCAVE SIEVE | GRID*2 | ||
| TYPE | SWIRL | |||
| 16 | FAN | DIAMETER | MM | 325 |
| NOS | 2 | |||
| WIDTH*GROUND CONTACT LENGTH | MM | 400*1500 | ||
| 17 | CRAWLERS | TRACK GAUGE | MM | 970 |
| STEERING RADIUS | LEFT | 3400 | ||
| RIGHT | 3400 | |||
| 18 | TYPE OF GEARBOX | MECHANISM+HST(3F,3R) | ||
| 19 | TYPE OF BRAKE | BY FOOT | ||
| 20 | TYPE OF RETHRESHER | BLADE-ROTATION | ||
| 21 | TYPE OF STORING GRAIN | GRAIN TANK(CAPACITY:1149 L) | ||
