| FOB Price: | US $6,990 / Piece |
|---|---|
| Min. Order: | 1 Piece |
| Min. Order | FOB Price |
|---|---|
| 1 Piece | US $6,990/ Piece |
Basic Info

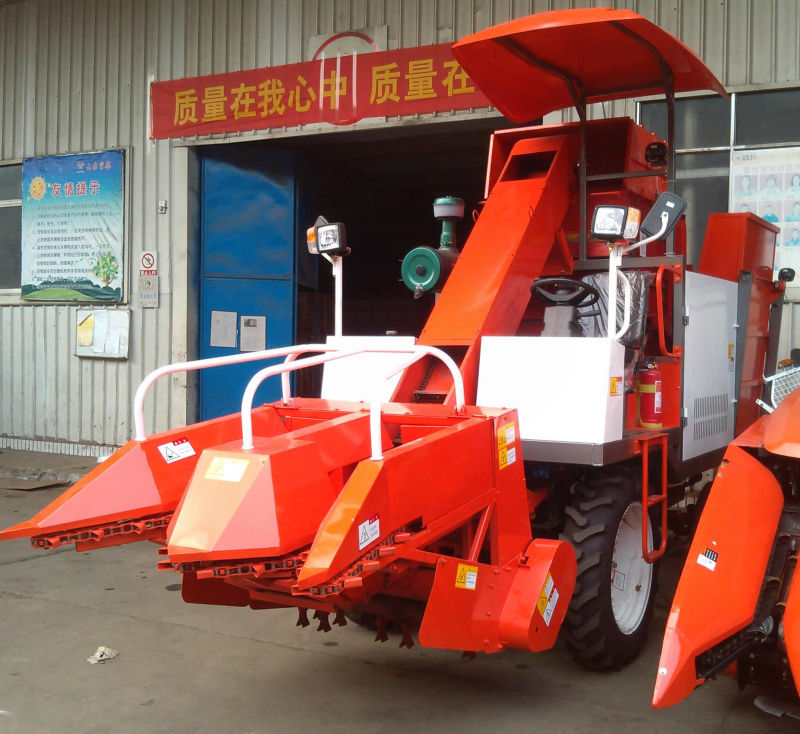

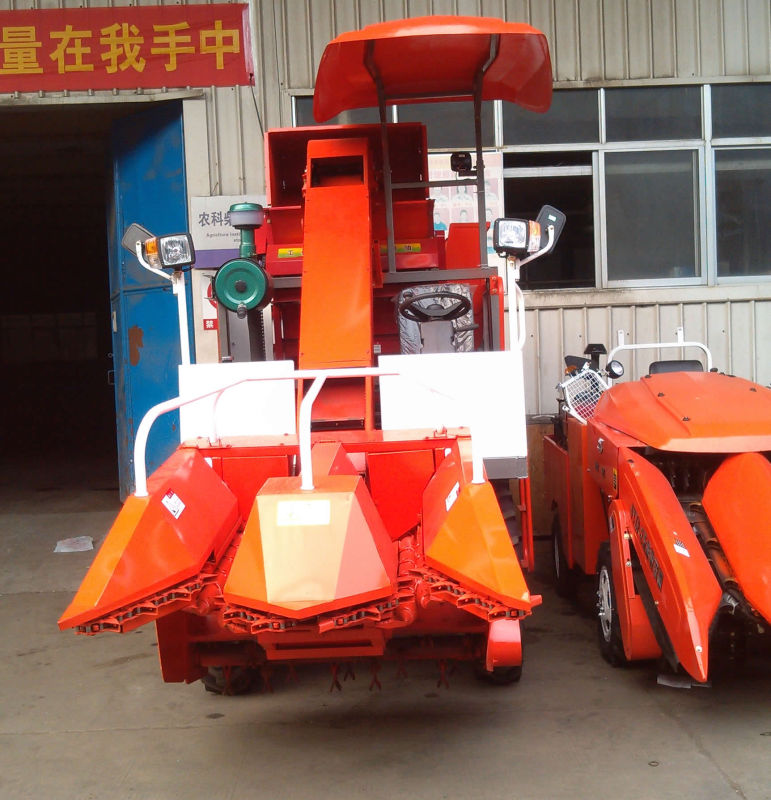

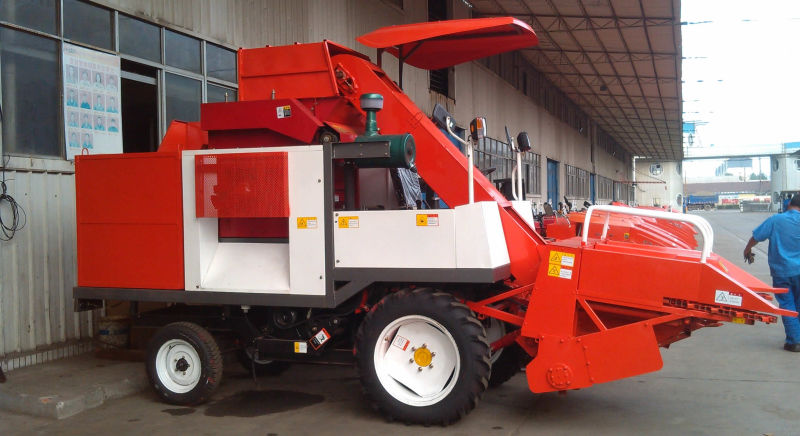

Model NO.: 4YZP-2G
Application: Corn
Harvest method: Uprooted
Transmission: Soft Shaft
Certification: QS, SGS, ISO9001:2008
Condition: New
2: Row
Specification: SGS
HS Code: 8433510090
Type: Vertical Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Backpack Type
Color: Red
Application Field: Agriculture
Trademark: SH
Origin: Shangdong
Product Description
1. 70hp diesel engine supply enough power for any corn field.
2. Double row cutting system, more effective, shred straw back to the field, more environmental
3. Lower ground pressure, better for pasing in farm field
4. Extremely strong chassis, excellent waterproof suspension wheel system.
5. Easier turning & control with friction disc brake, special heavy-duty gearbox harvester
| No. | Item | Unit | Design value |
| 1 | Model Specification | / | 4YZP-2D |
| 2 | Structure type | / | Self-propelled |
| 3 | Engine Model | / | 4102, 4 cylinder diesel engine |
| Rated Power | kW | 48 | |
| Rated speed | r / min | 2400 | |
| 4 | Dimensions (L × W × H) | mm | 5700 × 1700 × 3000 |
| 5 | Structural weight | kg | 2870 |
| 6 | The number of lines of work | Row | 2 |
| 7 | Applicable spacing range | mm | 450 to 750 |
| 8 | Working width | mm | 1600 |
| 9 | Maximum unloading height ear | mm | 1860 |
| 10 | Maximum elevator ear through a highly | mm | 2900 |
| 11 | Minimum ground clearance | mm | 300 |
| 12 | The minimum radius Turn left | mm | 3900 (outside) |
| The minimum radius Turn right | 4200 (outside) | ||
| 13 | Theory of operating speed | km / h | 1.5-3 |
| 14 | Operating hours of productivity | hm 2 / h | 0.20 ~ 0.33 |
| 15 | Fuel consumption per unit area | kg / hm 2 | ≤ 35 |
| 16 | Pull the stem roller type | / | |
| 17 | Snapping roll type | / | Horizontal pick roller |
| 18 | Peeling roller type | / | Cast iron roll rubber roller |
| 19 | Transmission Type | / | Mechanical gear |
| 20 | Guide wheel | mm | 1230 |
| Wheels | 1186 | ||
| 21 | Tire Size Guide wheel | / | 6.00 - 16 |
| Tire Size Wheels | / | 9.50 - 24 | |
| 22 | Type chopped straw | / | Flail |
| 23 | Straw chopper Model Specifications | / | 1JH-1300 |
