| FOB Price: | US $11,800 / Piece |
|---|---|
| Min. Order: | 1 Piece |
| Min. Order | FOB Price |
|---|---|
| 1 Piece | US $11,800/ Piece |
Basic Info
Model NO.: 4L-1.0
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Backpack Type
Color: Red
Application Field: Agriculture
Trademark: SH
Origin: Shandong
Application: Soybean
Harvest method: Cutting
Transmission: Hard Shaft
Certification: QS, ISO9001:2008
Condition: New
Cutting Width: 2.56
Specification: SGS
HS Code: 8433901000
Product Description

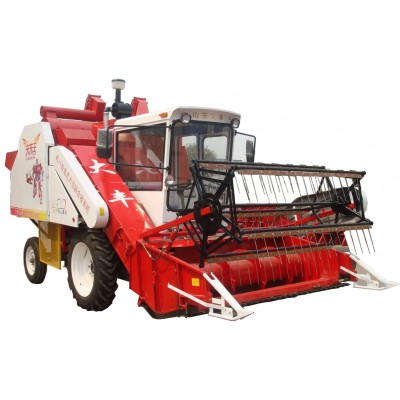

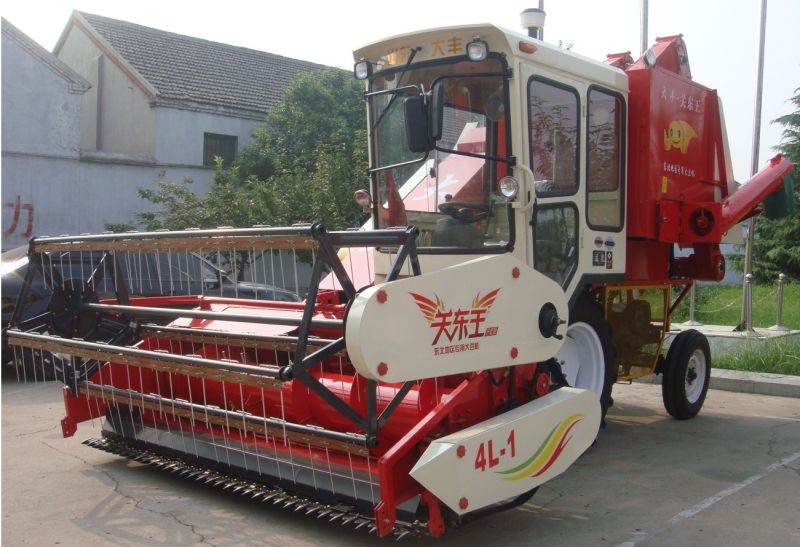

XCMG AGRO Produce the best harvester machines in China.
Main Features:
1. Use of automatic formed floating cutter to ensure lowest harvesting height.
2. Application of double rollers
3. Use of re-threshing device obtains low loss rate and high cleanliness
4. Short time in the machine and shorter threshing roller,increase the quality, colour and luster.
5. Stem and skin collected separately,more systematic
| Type | Wheel full feed self-propelled |
| Model | 4L-1.0 |
| Cutting Width | 2562mm |
| Feed | 0.5-1.0kg/s |
| Running speed | 2.48-16km/h |
| Diesel Engine | |
| Model | 4102 |
| Power | 48KW |
| Rotate Speed | 2600Rpm |
| Average Oil Consumption per Hectare | <19 Kg/hm² |
| Working Productivity | 5-10 Hm²/h |
| Total Weight | 3050 kg |
| Dimension(L×W×H) | 6210*3180*2930mm |
| Ground Clearance | 315 mm |
| Header | |
| Reel Type | Spring-tined |
| Reel Diameter | Φ900 mm |
| Reel Bat | 5 piece |
| Cross auger Type | Screw auger, eccentric extensible link |
| Cross Auger Diameter | Φ500 mm |
| Clearance between Auger and Bed Plate | 12-20mm |
| Cutter bar Stroked | 76.2mm |
| Cutter bar Type | Domestic strandard II |
| Conveyer | |
| Type | Flat belt raked tine,forced feed |
| Width | 500mm |
| Threshing Drum | |
| Type | Axial flow rasp bar |
| Diameter | Φ480mm adjustable |
| Length | 1190mm |
| Concave | |
| Type | Grid based |
| Angle | 212degree |
| Separation Area | 0.96m2 |
| Sieves | |
| Type | Double sieves + fan + re-threshing |
| above sieve | 0.56m2 |
| bottom sieve | 0.7m2 |
| Fan | |
| Type | Retroverted straight-blade centrifugal |
| Diameter | Φ420mm |
| Grain Auger Diameter×Thread Pitch | Φ125×115 mm |
| Unloading type | Mechanical |
| Tank capacity | 0.75m3 |
| Chassis | |
| Type | 4×2 wheeled |
| Front-wheel tread | 1300mm adjustable |
| Trailing wheel tread | 1270mm adjustable |
| Gear box | 3×2+1 |
| Wheelbase | 1985mm |
| Front-wheel Model | 9.5-24 |
| Trailing Wheel Model | 6.0-16 |
| Tire Pressure | Trailing wheel0.36Mpa |
| Running speed | 2.8-1.9Km/H |
| Oil Tank Capacity | 47L |
| Operator | 1 person |
| Qty'/40HC | 2 Sets |
