Basic Info
Model NO.: SH151
Application Field: Agriculture
Operation: Movable Operation
Trademark: SH
Origin: Shandong
Type: Rotary Tiller
Power Source: Diesel
Power: 15HP
Specification: ISO
HS Code: 87011000
Product Description
XCMG Agricultural Machinery produce the most popular walking tractors and power tillers in China.

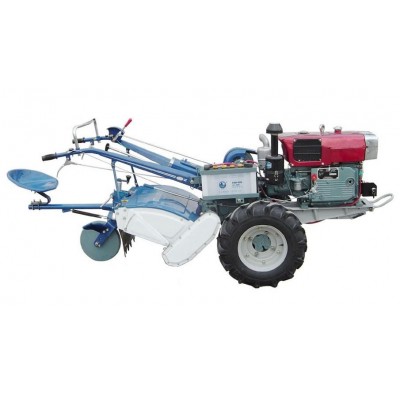

The SH151 Power Tiller/Two-wheel is of dual-function type that can be used asa means of traction as well as drive.
It is featured byits simple and compact structure,good reliability, long service life, easyoperation, ample output, light weight and good cross-country ability:
It is,verysuitable for use in paddy fields, dry fields, orhards, vegetable gardens and hilly land with a little inclination.
It can be used for rototilling,ploughing, harrow-ing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suit-able farm implementa or accessories are attached.
In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
| Model of Power Tiller | SH151 |
| Structure weightwithout rotary tiller | 350 Kg |
| Structure weightwith rotary tiller | 455 Kg |
| Working Weight (with rotary tiller) | 490 Kg |
| Turning speed of rotary tiller shaft | 188 RPM |
| Overall dimensions (L×W×H) | 2680×960×1250mm |
| Number of blades | 18 PCS |
| Rototilling width | 600 mm |
| Type of tractor | Single axle, dual-purpose for both tractor &drive |
| Traveling speedForward | 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 km/h |
| Traveling speedReverse | 1.1, 3.8 km/h |
| Tire Size | 6.00-12 |
| Wheel track | 800,740,640,580 mm (normally use 800) |
| Min.ground clearance | 185 mm |
| Min.turning radius | 0.9m (with no rotary tiller) |
| Model of engine | SH1005N-2 |
| Type of engine | Horizontal 4-stroke |
| Bore×stroke | 105×115mm |
| Total displacement | 0.915 |
| Compression ratio | 20:1 |
| Turing speed of crankshaft | 2000RPM |
| 1-hour rated output | 15HP |
| Specific fuel consumption | 250 g/wk.h |
| Specific lube oil consumption | ≤2.00 g/wk.h |
| Cooling mode | Condenser(Radiator) |
