Basic Info
Model NO.: SH554
Usage: Farm Tractor, Garden Tractor, Lawn Tractor
Drive Wheel: 4WD
Fuel: Gas / Diesel
Power: 55HP
Specification: ISO
HS Code: 8701901190
Type: Wheel Tractor
Certification: ISO
Emission Standard: Euro II
Condition: New
Trademark: SH
Origin: Shangdong
Product Description

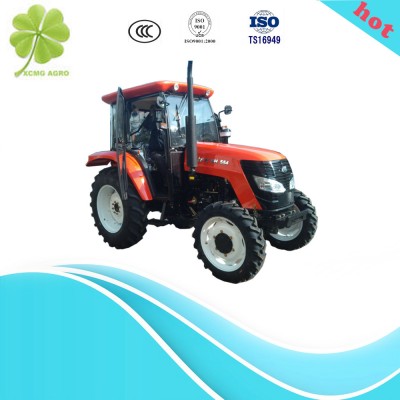

The XCMG SH504 Midsizel tractor
MAIN DISPOSITIONS
Dual-function clutch
Twin turning speeds of PTO
Power steering
Safe start switch
Fiberglass hood
Combination meter
Quality seat system
Seat belt
OPTIONAL
Folding ROPS
Sun shade
Creeper gear
Synchromesh
Cab
| Engine | ||
| > Model | 4100 | |
| > Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |
| > Rated Power | 38.2 kw(90hp) | |
| > Rated speed | 2400rpm | |
| > Stroke | 105mm | |
| > Displacement | 3.5L | |
| > Peak Torque | 210N.m/1870rpm | |
| > Fuel | Diesel | |
| > Compression Ratio | 17.5:1 | |
| > Fuel Consumption | <250 g/kw.h | |
| > Oil Consumption | <4.08g/kw.h | |
| > Speed | <1000r/min | |
| > Lubricating Way | Combined Pressure and Splashing | |
| > Cooling System | Radiator and watertank | |
| > Net Weight | 380Kg | |
| > Dimensions | 850mm X 660mm X 800mm | |
| Dimensions of Tractor | ||
| > Length (to front ballast) | 3835mm | |
| > Width | 1620mm | |
| > Height (to the exhaust vent) | 2135mm | |
| > Tread front wheel | 1280mm | |
| > Tread rear wheel | 1300 Fixed or 1200~1500 Adjusted | |
| > Axle Base | 2030 mm | |
| > Min.Ground Clearance | 325mm | |
| Transmission and Steering | ||
| > Tractor type | 4 wheel driving tractor | |
| > Operate weight | 1834 kg | |
| > Ballast weight | front ballast 140 kg / rear ballast 300 kg | |
| > Rated traction force | 1140 kg | |
| > Clutch | Dual-stage clutch | |
| > Steering | Power steering | |
| > Transmission Type | 8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift | |
| > Suspension Type | 3-point links | |
| > PTO Type and Rev | Semi-independent Type 540/1000 | |
| > PTO Spline Size | F35 Rectangle Spline with 6 teeth | |
| > Tyre | Front Wheel 8.3-20 / Rear Wheel 12.4-28 | |
