Basic Info
Model NO.: 1LY series
Application Field: Agriculture
Power Source: Tractor
Working Width(M): 0.4-2.0
No. of Discs: 2-6
Specification: Iso9001
Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Working Depth(Mm): 150-250
Trademark: Yili
Origin: Yucheng, China

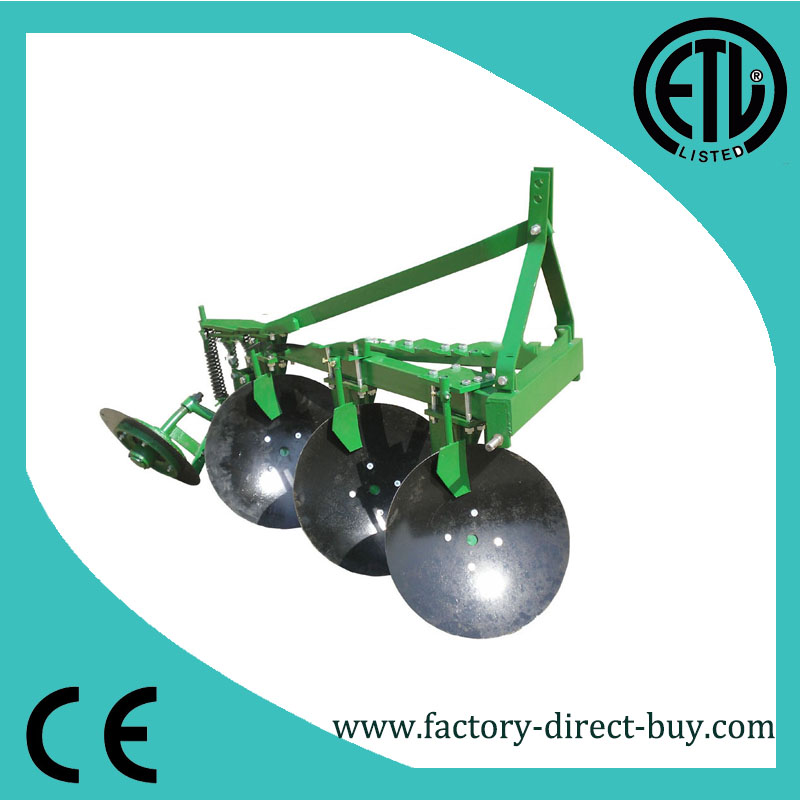

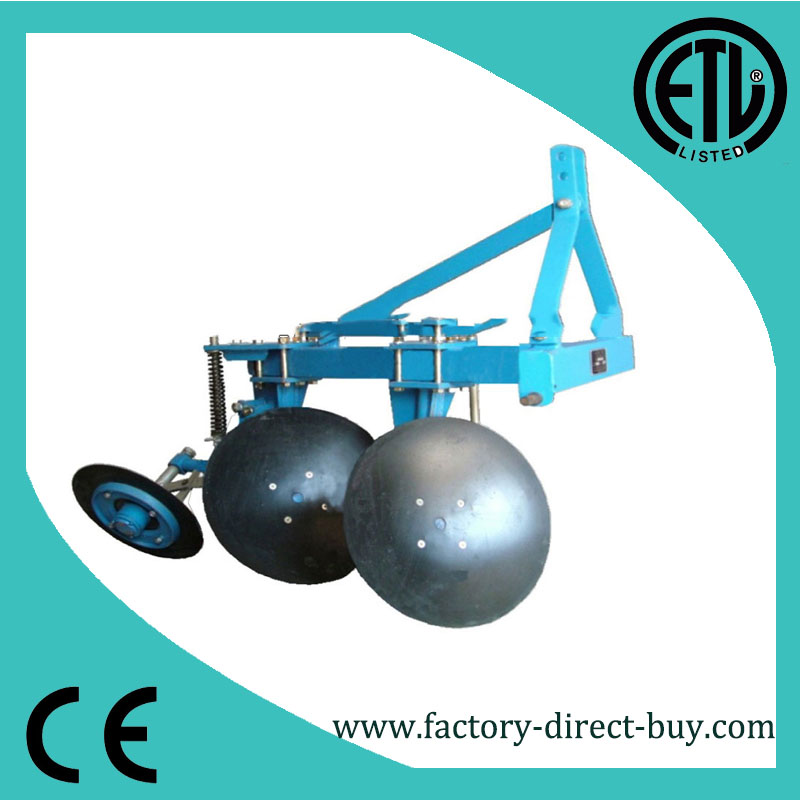

Product Description
This series disc plough is the perfect tool when ploughing in hard earth and soil with obstacles and buried rocks. They are well known for their features like light weight, low maintenance and high operation cost. Our range of disc plough is useful in hard dry trashy, stumpy land conditions and in soils where scouring is a major problem. 2, 3, 4 or 5 discs are available in a unit to satisfy the requirement of tractors.
| Model | 1LY-220 | 1LY-315 | 1LY-320 | 1LY-325 | 1LY-425 | 1LY-525 | 1LY-625 |
| (L*W*H) (cm) Overall dimensions | 133*76 *110 | 178*76 *110 | 179*79 *115 | 221*112 *143 | 275*124 *143 | 329*136 *143 | 383*150 *143 |
Working width(m) | 0.4 | 0.45 | 0.6 | 0.75 | 1.0 | 1.25 | 1.5 |
Working depth(mm) | 200 | 180 | 200 | 250 | 250 | 250 | 250 |
Dia. of disc(mm) | 500 | 450 | 500 | 650 | 650 | 650 | 650 |
No. of disc | 2 | 3 | 3 | 3 | 4 | 5 | 6 |
Weight(kg) | 160 | 180 | 200 | 430 | 490 | 560 | 600 |
Fitted power(kw) | 11 | 11-13.3 | 18.4 | 36.7-44.1 | 47.7-58.8 | ≥73 | ≥88 |
| Linkage | (Standard three-point mounted) | ||||||
Transport process
