Basic Info
Model NO.: 1BQDX series
Application Field: Agriculture
Power Source: Tractor
Use: Loosening The Land
Working Depth(Mm): 100-150
Trademark: yili
Origin: China
Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Movable Operation
Working Width(M): 1.25-5.0
No. of Disc: 16-60
Specification: Iso9001
Product Description

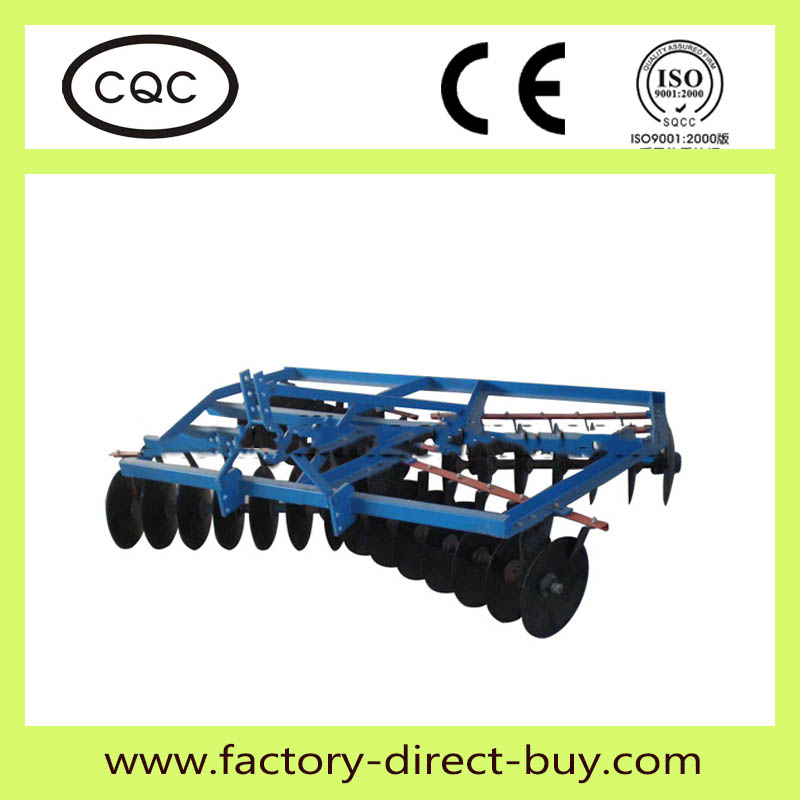

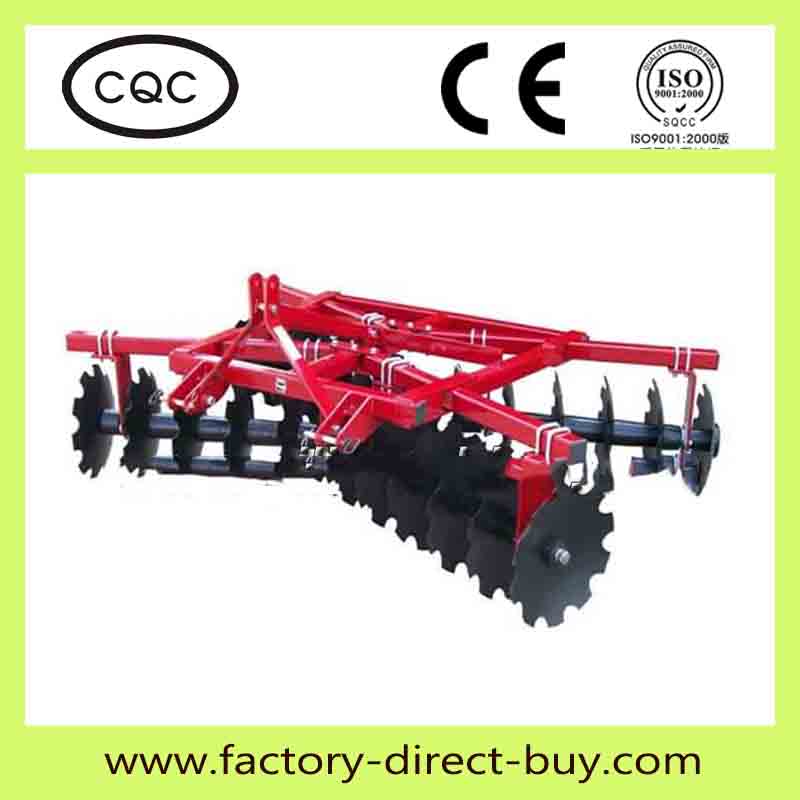

The Field General Line of Disc Harrows are constructed with heavy rigid angle iron. The disc gang axles are made of 1" square steel rods mounted on double thrust ring gray-iron bearings. All disc harrows have angle adjustments of 10 or 15 degrees. The Field General line of discs are designed with today's compact tractors in mind.
| Model | 1BQDX -1.25 | 1BQDX -1.6 | 1BQDX -2.0 | 1BQDX -2.3 | 1BQDX -2.65 | 1BQDX -3.0 | 1BQDX-5.0 |
| Working width(m) | 1.25 | 1.6 | 2.0 | 2.3 | 2.65 | 3.0 | 5.0 |
| Working depth(mm) | 100-140 | ||||||
| No. of disc | 16 | 20 | 24 | 28 | 32 | 36 | 60 |
| Dia. of disc(mm) | 460 | ||||||
| Weight(kg) | 330 | 390 | 460 | 560 | 600 | 650 | 1550 |
| Fitted power(HP) | 35-40 | 40-45 | 50-60 | 60-75 | 75-85 | 80-100 | 80-100 |
| Linkage | Standard three-point mounted | Trailed | |||||
