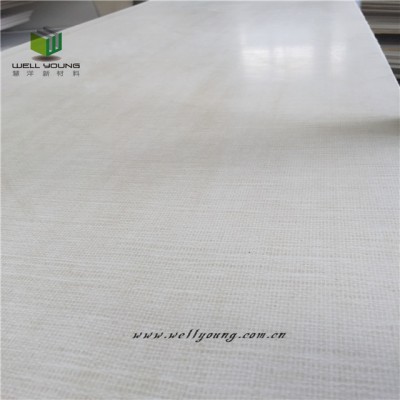

premium 18mm damp proof mgo subfloor board

Mgo Panels Description

Mgo Panel (Magnesium Oxide wall board) is a light weight non-asbestos and non-flammable panel product which is made of magnesium chloride(MgCl2), magnesium oxide (MGO), per-lite and wood fiber. It is widely used in construction, decoration and SIPs (Structural Insulated Panels) With amazing performance in fireproof, heating isolation, bending strength, impact strength.

Mgo Panels Features

• Fireproof

• Light weight

• Non-asbestos

• Impact resistance

• Sound reduction

• Heating isolation

Mgo Panels have been exported to UK, Ireland, USA, Australia, New Zealand, Poland, Chile, Thailand and etc.we are offering best quality, price and service to dealers, agents, brand owners, contractors and SIPs (Structural Insulated Panels) manufacturers.

Mgo Panels Specification

Size: 1200*2400/2700/3000mm, 1220*2440/2745/3050mm

Thickness: 3-20mm

Density: 950-1200kgs/m3

Color: White,Grey

Edge: Square edge, Tapered edge, Beveled edge.

Mgo Panels Technical Data

Flexural strength: 11 Mpa

Impact strength: 20.3 KJ/m2

Apparent density: 1049 kg/m3

Moisture content: ≤8%

Drying shrinkage: 0.2%

Swelling rate: 0.4%

Holding the bolt strength: 49 N/mm

Chloride ion content: 0.01%

Thermal conductivity coefficient: 0.206 W/(m*k)

Fireproof Grade: A1 Grade

Mgo Panel Applications

• For Internal Wall, Partition & Ceiling

• The Decorative applications

• The Sub-roof board

• The Underlay board for Floor and Wall tile

Others

Payment:

T/T; 30%T/T as advance payment, 70% T/T balance payment against the photocopy of B/L

Delivery Time:

Normally 20 days after receiving advance payment

Package:

Wooden Pallet with PE film, PVC belts and corner protections.
