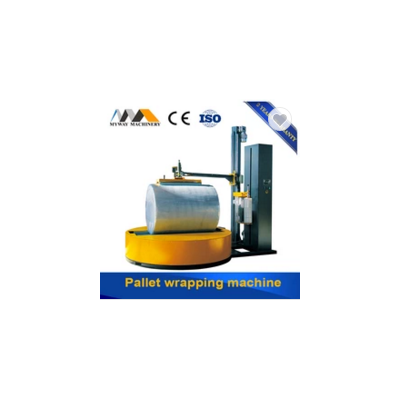

1. Designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels, reel axial wrapping across the cylindrical diameter then along the longitudinal axis.
2. Touch screen, PLC easy operation control; Pre-stretch system up to 250% (customized); Wrap times can be preset.
3. Stable performance, working life 10 years, quality guarantee 2 years.
European standard design and manufacture, same quality, but Chinese market price; pass CE certificate.
4. Accept customer’s design order, satisfy customer’s different requirements, install Pneumatocyst reel ejection system or Auto cut & grab film after wrap finished.
Roll Diameter | 600-1500mm |
Roll Width | 500-1600mm |
Roll weight(Max.) | 2000kg |
Packing efficiency | 20-30 rolls /hour |
Dia.of turntable | 2000mm |
Turntable speed | 3-12rpm |
Turntable Height | 460mm |
Power supply | 2.0kw/AC380V |
Machine weight | 1080Kg |
Dia.of roller | 150mm |
Roller center distance | 420mm |
Machine dimension(mm) | 2895(L)X2000(W)X2300(H) |
Air consume (if have reel ejection system) | 1000ml/min |
