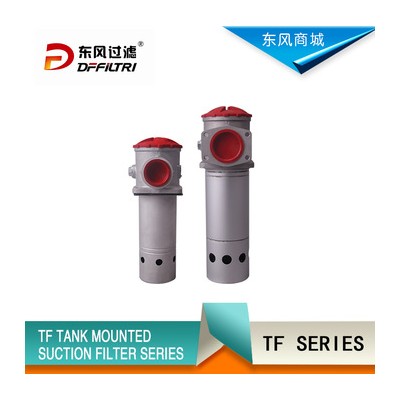

DFFILTRI Hydraulic Suction Filter TF Series For Oil Tank--Xinxiang Dongfeng Filter Technology Co., Ltd.

Product Description

Brand	DFFILTRI	Filter cover material	High strength plastic end cap
Model number	TF-250*	Filter bowl material	High strength composite membrane
Material	plastic end cup	Seals	Perbunan; Viton
Model of element	TFX-250*	Filter element	Filter medium material; High strength carbon steel skeleton
Weight	0.45;0.82;0.87;1.75;2.60;4.3;6.2;6.9;8;10.4kg	Optional accessories	ZKF-II; ZS-V
Filtration Rating	80; 100; 180um	MOQ	5 Piece
Norninal Flow Rate	40;63;100;160;250;400;630;800;1000;1300L/min	Dia	20;32;40mm
Type of Connection	Metric threaded Connection; Flanged Connection	Certificate	ISO9001:2008

The TF series filters can be installed at the pump suction port, on the top, at the side or in the bottom of the tank.There is a check valve inside the filter, during maintenance, when filter element is withdrawn for washing, the check valve will close automatically to stop oil flowing out from the tank.

A vacuum indicator in the filter gives singals when the pressure drop across the element reaches 0.018MPa showing that the filter shall be cleaned. If no maintenance is done, as the pressure drop reries to 0.02MPa, the by-pass valve will open to allow oil flowing into pump.This kind of filter can be installed at inlet port of the pump, in order to protect the pump and other component. This filter can help to keep hydraulic syetem and easy to use.
