| Type: | Multi-Function Packaging Machine | Condition: | New | Function: | Filling, Sealing, Wrapping |
| Application: | Chemical, Food, Medical | Packaging Type: | Bags, Pouch, Stand-up Pouch | Packaging Material: | Paper, Plastic, laminated film/pp/pe |
| Automatic Grade: | Automatic | Driven Type: | Electric | Voltage: | 380V 3phase 50/60hz |
| Power: | 5.5KW | Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | KD |
| Model Number: | GD8-200F | Dimension(L*W*H): | 4688*1880*2188mm | Certification: | CE & SGS |
| After-sales Service Provided: | Engineers available to service machinery overseas | material:: | 304 stainless steel | pouch size:: | L:100-350mm W:100-210mm |
| speed:: | 10-60pouches/min | voltage:: | 380v 3phase 50/60hz | Power:: | 5.5KW |
| compress air:: | 0.6m3/min | operation system: | PLC touch srceen | filling range: | 10-5kg |
| Packaging Details: | special export wooden packing |
| Delivery Detail: | Shipped in 35 days after payment |

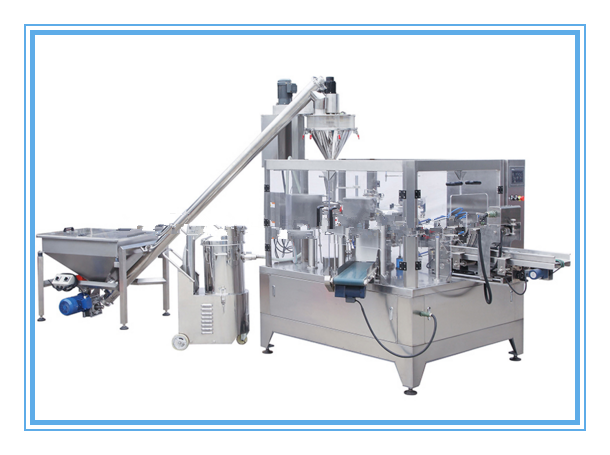

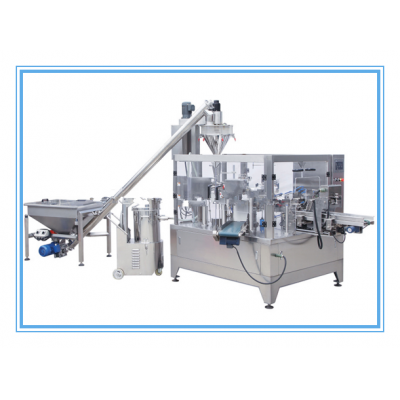

Automatic powder packing machine line for flour powder
Main Technical Parameters
Working position | eight-working position |
Bag material | Laminated film/pe/pp |
Bag pattern | Stand-up with zipper & spout,stand-up ,flat bag, |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1.5% |
Bag size | W:100-200mm L:100-350mm (could be customized) |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m3/min |
Technical Characteristics
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.
Application:
Automatic powder packing machine line for flour powder is suitable for powder material,such as milk powder,flour,coffee powder,seasoning,additive,chemical supplies and other powder material automatic packing.
