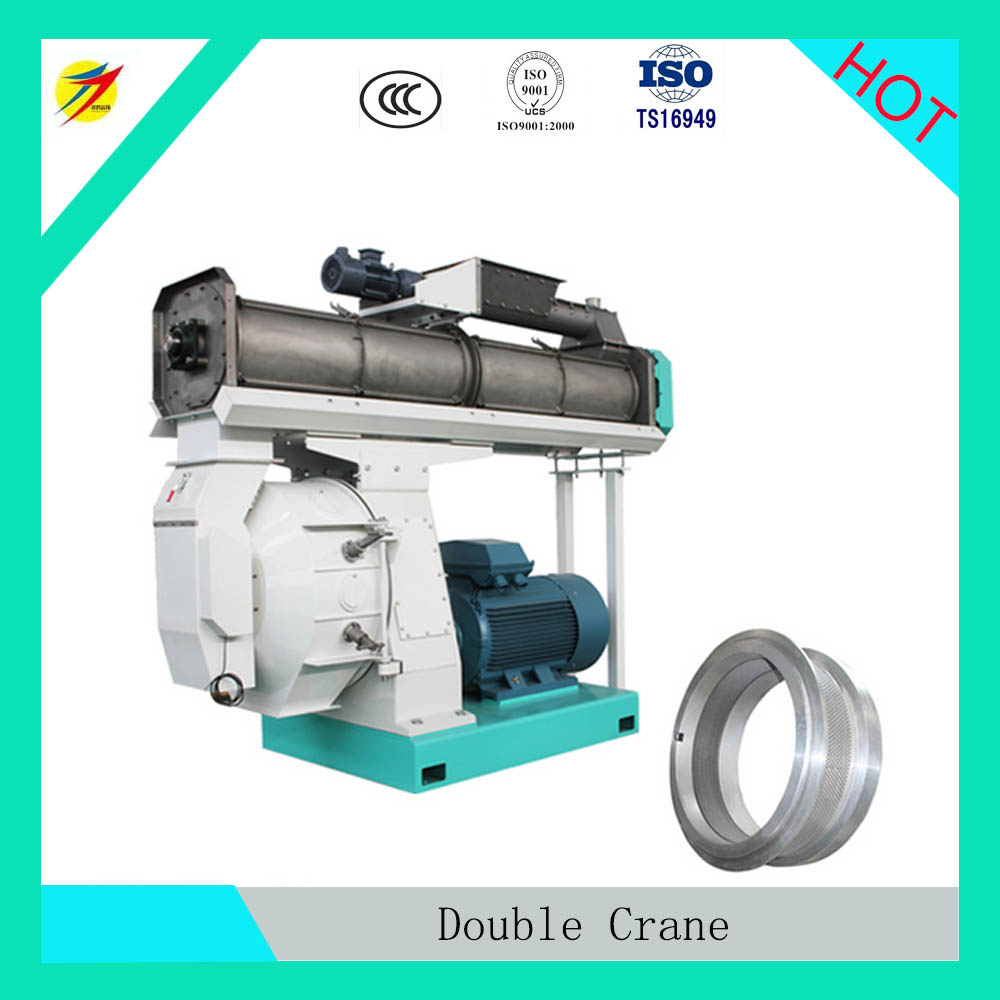

hign efficiency popular use poultry feed pellet machine
| Condition: | New | Place of Origin: | Jiangsu, China (Mainland) | Brand Name: | F.A.S.T. |
| Model Number: | SZLH | Type: | Feed Pellet Machine | Voltage: | 380-420v |
| Power(W): | 110-250kw | Dimension(L*W*H): | 3000*1260*1860mm | Weight: | 3270 kg |
| Certification: | ISO9001, CE & ISO9001 | Warranty: | One Year, 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
| Application: | pelletizer | Color: | white and blue | Bearing: | SKF |
| Motor: | Siemens | Transmission:: | Gearbox drive | Diameter of pellet: | 6-12mm |
| Material of ring: | Stainless steel | Capacity: | 3-30t/h |
| Packaging Details: | Depending on customers' requirements like iron case,iron pallet ect. for pellet mill |
| Delivery Detail: | 30 days after receiving deposit payment of pellet mill |
1.1 Features of the pellet mill:
1.Employs classical gear drive with high transmission efficiency and high throughput. The bearings and oil seal are imported.

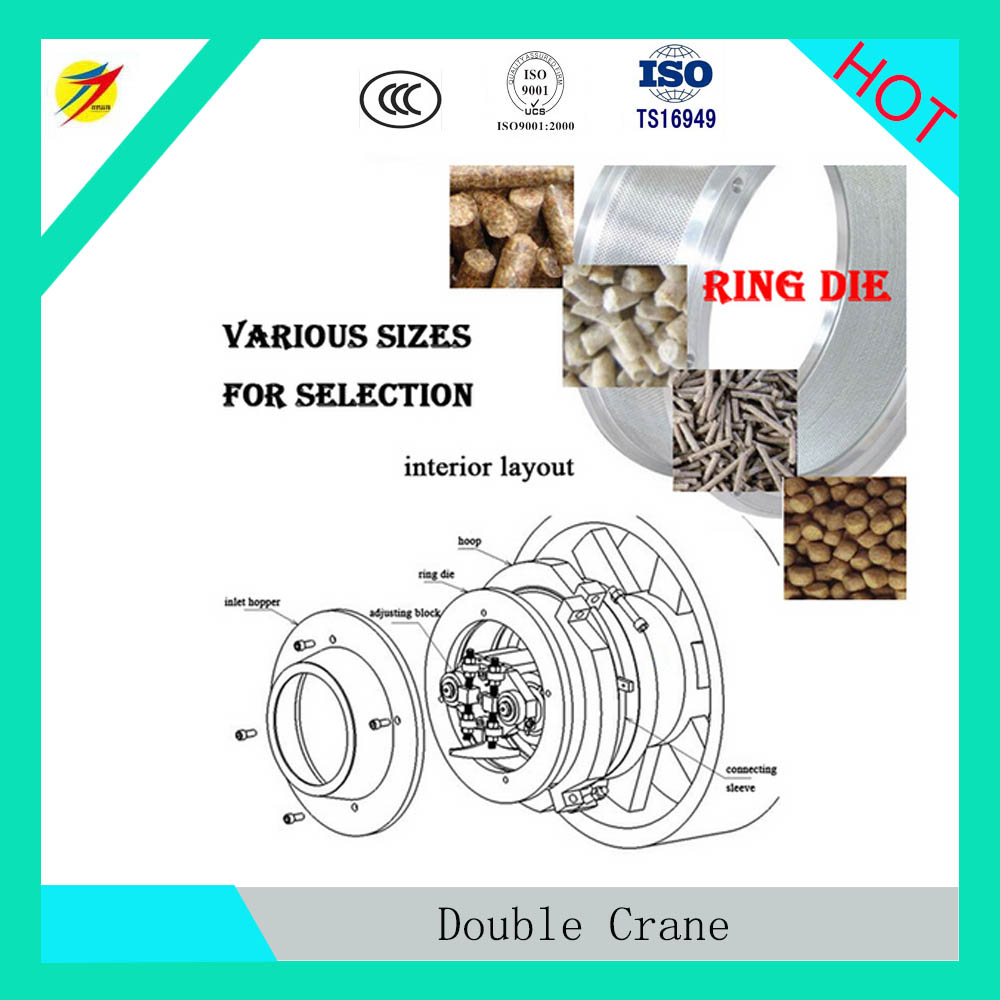

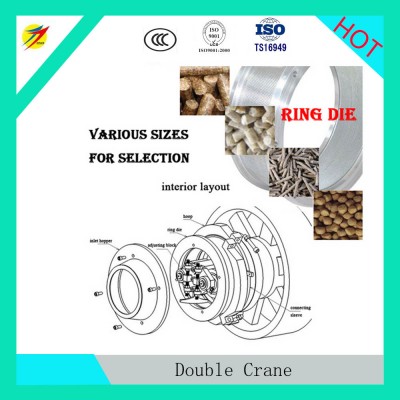

2.Ring mould with cone installation makes it more convenient and easier to change the ring die.
3.Quick change of die device to enhance productivity.
4.Automatic lubrication and adjustment device: the automatic lubrication of main shaft and roller bearing, the automatic adjustment of the gap between mould and roller.
5.Different conditioners can be selected to suit for the best effect of condition of poultry &livestock feed and normal aqua feed.
1.2Technical Parameters of the pellet mill:
We provide the following models for you. You can choose the right machine according to your own demands.
Model | Main power(kw) | Capacity(t/h) |
SZLH420 | 110 | 3-12 |
SZLH520 | 132/160 | 4-18 |
SZLH558 | 160/200 | 5-22 |
SZLH680 | 220 | 10-25 |
SZLH760 | 250 | 10-30 |
In addition, we can customize all kinds of pellet machines based on your request.

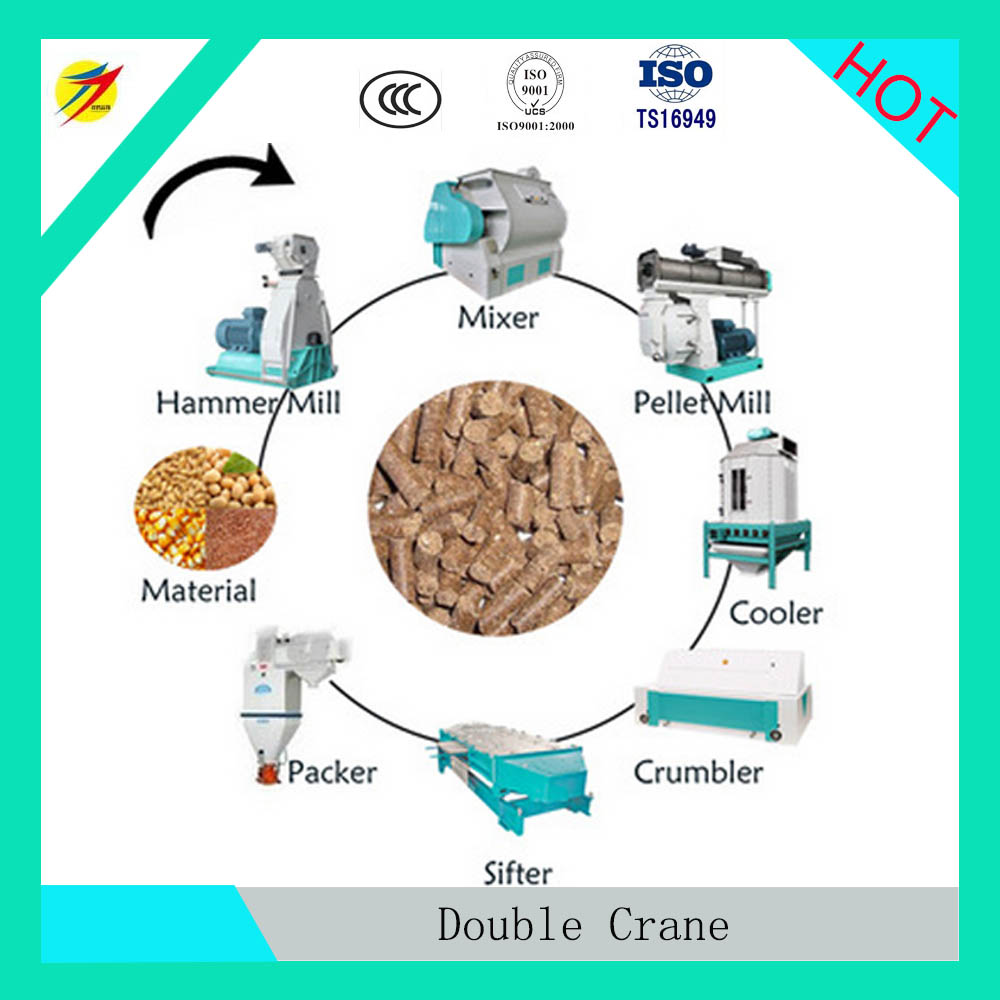

1.3The complete production line
