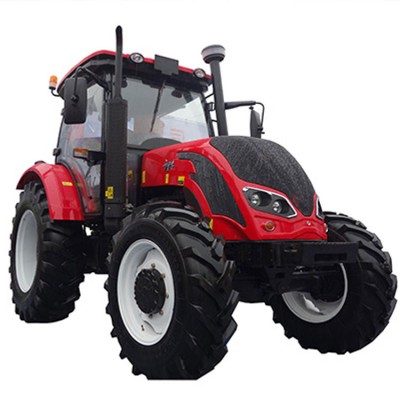

Large power tractor QLN90hp 4wd
Large power tractor QLN90hp 4wd
Supply Ability:
0 per 0
Port:
Qingdao
Your Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
zhiyan
Model Number:
Wheel Tractor
Product Description



Condition:New

Type:Wheel Tractor

By wheel:4WD

Usage:Farm Tractor

Drive Type:Gear Drive

Power(W):69900

Certificate:ISO9001;2008

Model Number:QLN904

Place of Origin:Henan, China (Mainland)

After-sales Service Provided:Engineers available to service machinery overseas

power:90hp

drive type:4wd

Engine:YTO, Yuchai, LovoL

gears:F16+R8 creeper gears or shuttle gears

clutch:dual clutch, independet operation

PTO:double speed 540/1000, 760/1000 rpm

steery type:hydraulic power steerin

linkage:Cat. 2, rear-mounted 3-point

Multi-way valve:two pairs, optional





Main Features

1.Parking brake: Disc brake;

2.Flexible and stable mesh sleeve shift;
3.Full hydraulic front-wheel steering with independent circuit;
4.Gearbox is 4X(2+1)×2 shuttle shift,8 forward gears+ 4 reverse gears;
5.Rear semi-independent Power Output, with 6-spline 540/1000 r/min;
6.The use of a simple floor structure and an external divider is easy for maintenance;
7.Adopt YTO engine, Chinese famous diesel engine , big brand, quality assurance;
8.Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24
9.Planet-gear Final Transmission with small volume and large reduction ratio;
10.Planet-gear Final Transmission with small volume and large reduction ratio;
11.9-inch single or double action clutch & Semi-split lifter LT354 types of four wheels farm tractor ,full hydraulic steering;

Detailed Images



Parameter


Drive type

4x4

Engine

Engine model

YTO / Yuchai /LOVOL, 4 cylinder, turbocharging

Capacity of fuel tank(L)

150

Rated speed (r/min)

2300

Engine power

66.2

Lowest fuel consumption (g/kw·h)

≤242

Transmission

Clutch

Dry,dual-stage type, independent

PTO Speed(rpm)

540/1000 or 760/1000

Gearshift

16F+8R creeper or shuttle gear

Hydraulic system

Hydraulic output valve

2-Way(optional)

 Three point linkage

Category of 3-point link

Category II

Lifting capacity(at point of 610mm)KN  610mm

>16.0

Technical parameter

Dimension LxWxH mm

4280x2085x2815

Wheel base(mm)

2195

Track base(mm) front wheel

1610~1950 mm

Track base(mm) rear wheel

1620~2020 mm

The smallest clearance(mm)

380

Front tyre

11.2-24

Rear tyre

16.9-34/ 18.4-30 (optional)

Factory&Cetification




WEIFANG BINHAI GROUP WORK WIN CO.,LTD. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments, and accessories.
Our main product lines: tractor series, agricultural cultivating machinery series,spraying series, harvesting machinery series, post-processing machinery series, casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO), and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.


Packing & Delivery


Packaging Mode: standard export package
Delivery Time: Within 15-25 working days after payment




FAQ


Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What is the MOQ?
A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
Q3: What is the delivery time?
A3: 15-20 working days after payment.
Q4: About the package?
A4: Iron frame or wooden box.
Q5: Can I put my brand name on your agricultural machines instead of your brand name?
A5: Yes. We could do OEM/OBM.
Q6: What about the payment terms?
A6: T/T. We also can accept other payment terms.
Q7: Can we mix different models together?
A7: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.


Contact Us




Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
