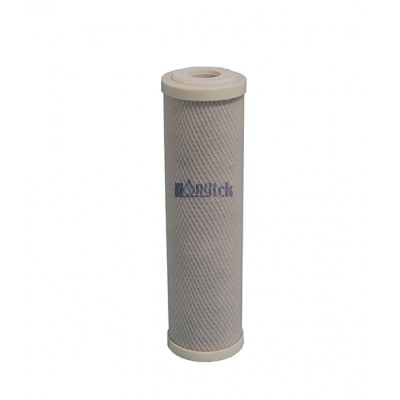

CTO series Carbon Block Cartridge Filters
CTO series Carbon Block Cartridge Filters
FOB Price:
US $1.350 / Piece
Min.Order:
1 Piece/Pieces
Supply Ability:
100000 Piece/Pieces per 0
Port:
Guangzhou,Shanghai,Shenzhen
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongtek
Model Number:
CTO series
Product Video
Product Description

Description

Carbon Block Cartridge Filters are made of activated carbon block which is manufactured by strictly extruded controlled engineering processes,

advanced techniques and FDA approved material of the high quality activated carbon guarantee excellent durability, minimal pressure loss and high flow rate. Carbon block cartridges are highly effective in removing odour, bad taste, chlorine spores and microorganisms in water. Carbon block cartridge filters provide economic solution for a wide range of residential, commercial and industrial water filtration processing.



Feature

1. Multiple sizes of carbon filters are available for custom

2. High chlorine taste & odor and bad taste & odor reduction

3. Efficient filter material, economic prices with extended service life

4. Extensive chemical compatible ability, so wide range in application

5. Enhanced dirt holding capacity, low pressure drop and high flow rate

6. FDA approved material good absorbency and no carbon fines release



Application

1. Chemicals

2. Electronics

3. PCB industry

4. Drinking Water

5. Plating Processes

6. Food & Beverages

7. Pre RO/DI Filtration

8. Waste Water Treatment


Specification

Filter MediaCoal, Coconut Shell Activated Carbon
Length5", 9.75", 9.8", 10", 20", 30", 40" (According to customers requirements)
Inside Diameter28mm, 30mm (Special ID can be customized)
Outside Diameter2.5"(63mm), 2.55"(65mm) Special OD is accepted
Filtration Rating5μm, 10μm
End CapPolypropylene
Inner/Outer WrapPolypropylene Non-woven fabric
Gasket/O-ringSilicone, Buna-N, EPDM
NettingPolyethylene

Performance

Operation Data for Carbon Block Cartridge Filters

Maximum Operating Temperature80℃(176℉)
Max. Differential Pressure7.0 bar at 25℃ (100 psi at 77℉)
Max.Operation Pressure17 bar
Recommended Change Out Differential Pressure2.1 bar (31 psi)
Max. Flow Rate5 L/min ( water, △P=0.15kgf/c㎡, 10" Carbon Block Cartridge)

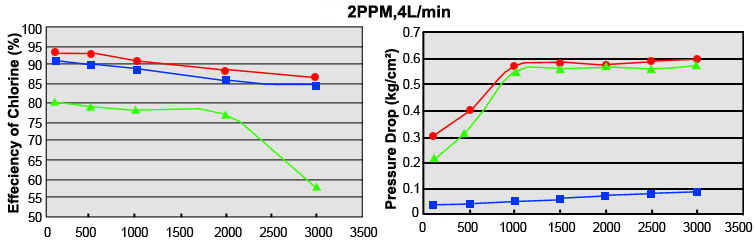

Efficiency & Flow Rate 10" CTO Carbon Block Cartridge Filters



Removability to Multifarious Impurities

Remaining chlorideChemical oxygen demandTotal ironOxideMercuryAsCyanidePhenolSixivalency
93.83%43.21%91.88%67.32%79.43%38.51%99.98%78.85%8.77%


Average Adsorption to Poison Substance for 10" Carbon Block Cartridge Filters

BenzneTolueneMethanolEthoxyChloroformAcetoneStyreneHyaarogen sulphide

N-butyl sulfhydrate

68g81g69g91g120g72g60g125g171g


Technical Index of Activated Carbon

Ratio for surface area800 - 1000 m²/g
Adsorption for iodine900-1000 mg/g
Adsorption for Benzene20-25%
Adsorption for carbon tetrachloride50-60%
Adsorption for Methylene Bule13-16ml/g
Ash content≤3.5



Tech Support

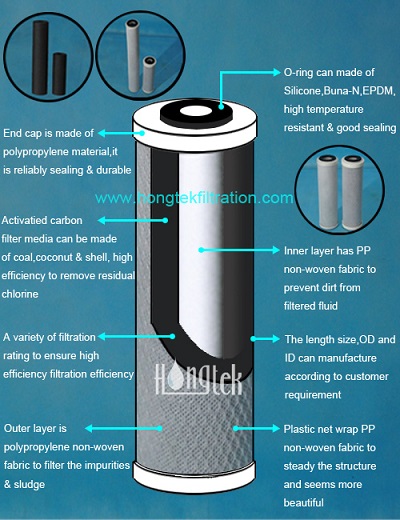

Construction of Carbon Block Cartridge Filters

● Outer layer is polypropylene non-woven fabric to filter the impurities & sludge

● Inner layer has high quality PP non-woven fabric to block carbon powder drop of

● Carbon block cartridges can be made of coal & coconut shell accodring to requirement

● The length size of OD and ID can be manufactured according to customer's requirement

● End cap is made of FDA approved polypropylene material, it is reliably sealing & durable

● A variety of filtration rating to ensure high filtration efficiency of remove residual chlorine

● O-ring can be made of Silicone, Buna-N, EPDM, high temperature resistant & good sealing




Oder Information

CTOFilter MaterialLengthIDODMicron RatingGasket/O-ring

CTO Series Extruded

Carbon Block Cartridge Filters

A = Coal5 = 5"C = 28mmM = 2.5"(63mm)5 = 5μmS = Silicone
9.75 = 9.75"
9.8 = 9.8"
10 = 10"E = EPDM
B = Coconut Shell20 = 20"D = 30mmF = 2.55"(65mm)10 = 10μm
30 = 30"U = Buna
40 = 40"

For Example:

CTO-B-10-C-M-5-S

CTO Series Extruded Carbon Block Cartridge Filters - Coconut Shell - 10" - 28mm - 63mm - 10μm - Silicone

Special CTO Series Extruded Carbon Block Cartridge Filters can be customized, such as special ID, OD, length and end caps etc.


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
