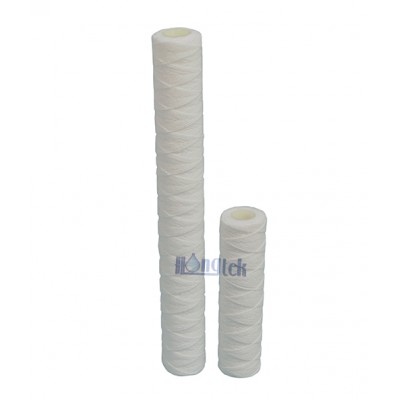

PSW series PP String Wound Cartridge Filters
PSW series PP String Wound Cartridge Filters
FOB Price:
US $0.880 / Piece
Min.Order:
1 Piece/Pieces
Supply Ability:
100000 Piece/Pieces per 0
Port:
Guangzhou,Shanghai,Shenzhen
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongtek
Model Number:
PSW series
Product Video
Product Description

Description

PP String Wound Cartridge Filters are manufactured by honeycomb construction with FDA approved polypropylene wound yarn material, outer layers are loose while inner layers are tight. Hongtek use computer modeling process which optimizes pp string wound cartridges geometrically and maximizes the use of cartridge surface area by the diamond-shaped depth filtration cones.



Feature

1. Wide chemical compatibility and cost savings from long service filter life

2. Large surface area enhance pp string wound cartridges filtration efficiency

3. PP wound cartridges have wide variety of applications and diverse range of removal ratings

4. Honeycomb construction of pp wound filters offer consistent performances of high dirt holding capacity

5. PP wound cartridges havd graded pore structure for efficient removal of a wide range of particle sizes

6. 100% FDA approved polypropylene wound yarn material without odor, foaming, adhesives and no fine fibre drop out



Application

1. PCB industry

2. Food & Beverage

3. Drinking water filter

4. Pre-RO water filtration

5. Chemical filter solution

6. Electroplate liquid filtration

7. Electronics and Semiconductor




Specification

Filter MediaPolypropylene
Length5", 9.75", 9.8", 10", 20", 30", 40", 50" (According to customers requirements)
Inside Diameter28mm, 30mm (Special ID can be customized)
Outside Diameter2.4"(61mm), 2.5"(63mm), 2.55"(65mm) Special OD is accepted
Filtration Rating1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
CorePP, SUS304, SUS316
Gasket/O-ringSilicone, EPDM, Viton, Buna
End CapDOE, 222/Flat(SOE), 222/Fin(SOE), 226/Flat(SOE), 226/Fin(SOE)

Performance

Operation Data for PP String Wound Cartridge Filters

Maximum Operating Temperature60 ℃(140℉)
Max. Differential Pressure2.7 bar at 27 ℃(50 psi at 80℉)
1.4 bar at 60 ℃(20 psi at 140℉)
0.7 bar at 82 ℃(10 psi at 180℉)
Liquid Flow DirectionOutside to inside
Recommend Change out Differential Pressure1 bar (14 psi)

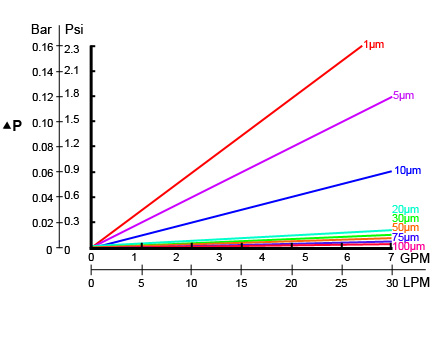

Pressure Drop vs Flow Rate of 10" PP String Wound Cartridge Filters



Tech Support

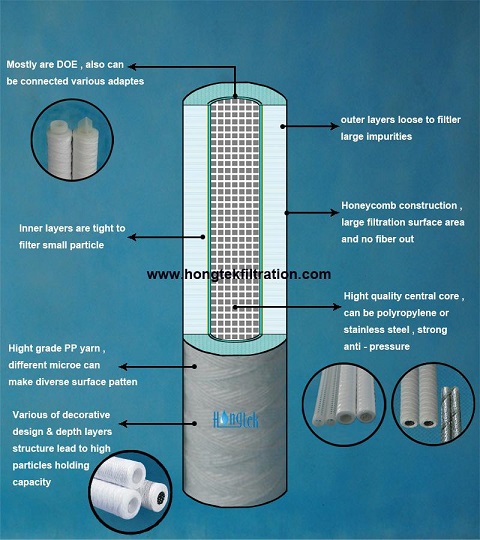

Construction of PP String Wound Cartridge Filters

● The picture is the cross-section of pp wound cartridges

● High dirt holding capacity,high flow rate and long service time

● From outer layers to inner layers the wound yarn are loose to tight

● Honeycomb construction without using adhesives and no fine fibre drop out

● Multilayered structure and depth filtration pattern ensure good filtration efficiency

● High quality pp string wound filters for compatibility with wide range of process fluids

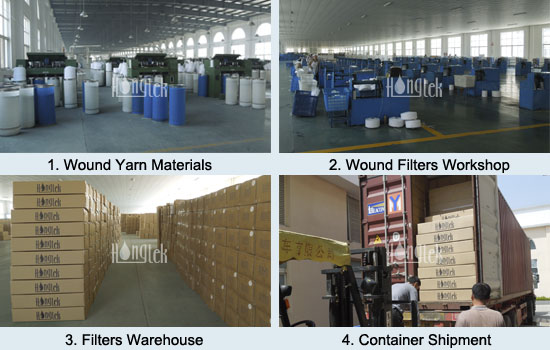

Production of PP String Wound Cartridge Filters


● Wound Yarn Materials: All pp wound yarns are made of high quality FDA approved nonpollution pp materials, so keep the advantage of filter material industry

● Filters Workshop: One of largest workshop of pp string wound filters China, high out put & fast delviery time, superior quality, excellent management system

● Wound Cartridges Warehouse: Scientific storage and warehouse of pp wound cartridges are also important, clean and moisture-resistant warehouse to the benefit of good delivery efficiency

● Container Shipment: PP string wound cartridges are convenient to be loaded into containers, forklift is quick action for cartons or pallets, save some spaces and times, safety transport for the shipment



Oder Information

PSWIDODMicron RatingLengthCore MaterialEnd CapGasket/O-ring

PSW Series

PP String Wound Cartridge Filters

A = 28mmC = 61mm1 = 1μm5 = 5"P = PPD = DOES = Silicone
5 = 5μm9.75 = 9.75"
M = 63mm10 = 10μm9.8 = 9.8"T = 222/Flat(SOE)E = EPDM
20 = 20μm10 = 10"S4 = SUS 304
B = 30mm30 = 30μm20 = 20"O = 222/Fin(SOE)V = Viton
F = 65mm50 = 50μm30 = 30"
75 = 75μm40 = 40"S6 = SUS 316P = 226/Flat(SOE)U = Buna
100 = 100μm50 = 50"L = 226/Fin(SOE)

For Example:

PSW-A-M-5-40-P-D

PSW Series PP String Wound Cartridge Filters - 28mm - 63mm - 5μm - 40" - PP Core - Double Open End (DOE)

Special specifications PP String Wound Cartridge Filters can be customized, such as special ID, OD, length and end caps etc.


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
