NPP series PP Melt Blown Filter Cartridges
NPP series PP Melt Blown Filter Cartridges
FOB Price:
US $0.530 / Piece
Min.Order:
1 Piece/Pieces
Supply Ability:
100000 Piece/Pieces per 0
Port:
Guangzhou,Shanghai,Shenzhen
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongtek
Model Number:
NPP series
Product Video
Product Description

Description

PP melt blown filter cartridges are high dirt holding capacity, low pressure drop, high flow rate, good chemical resistance, no fibre release, longer service life and effectively filtration for suspended particle, sediment and other kinds of impurities. PP melt blown cartridges are economical and classical filter media, widely used in liquid prefiltration industries.



Specification

Filter Media

Polypropylene

Length

5", 9.75", 9.8", 10", 20", 30", 40", 50", 60", 70" (According to customers requirements)

Inside Diameter

28mm, 30mm (Special ID is accepted)

Outside Diameter

2.36"(60mm), 2.4"(61mm), 2.5"(63mm), 2.55"(65mm)  (Special OD is accepted)

Filtration Rating

1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm

Gasket/O-ring

Silicone, EPDM, Viton, Buna

End Cap

DOE, 222/Flat(SOE), 222/Fin(SOE), 226/Flat(SOE), 226/Fin(SOE)



Feature

1. PP filter cartridges are mainly applied to most industry standard housings

2. 100% FDA approved safety polypropylene material have a lot of demanding applications

3. Superior PP melt blown filters are high filtration efficiency, consistent good performance

4. PP cartridges are multi-layered construction, high contaminant holding capacity and longe service life

5. Customized special PP melt blown filter cartridges are accepted to meet specific application requirements

6. Many types of end caps are available by thermally-bonded, such as 222/fin, 222/flat, 226/fin, 226/flat etc.



Applications

1. PCB industry

2. Plating solution

3. Food & Beverage

4. Electronic Industry

5. Petrochemical Process

6. Chemicals and Solvents

7. Pre RO/ID water filtration

8. Industrial waste water treatment


Performance

Operation Data for PP Melt Blown Filter Cartridges

Maximum Operating Temperature60 ℃(140℉)
Max. Differential Pressure3.0 bar at 27℃ (43 psi at 80℉)
2.0 bar at 60℃(29 psi at 140℉)
1.0 bar at 60℃(14 psi at 140℉)
Liquid Flow DirectionOutside to inside
Recommend Change out Differential Pressure2.5 Bar

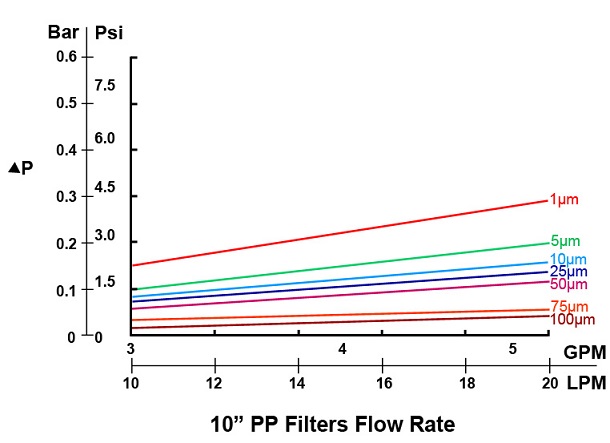

Pressure Drop Rate of 10" PP Melt Blown Filters



Tech Support

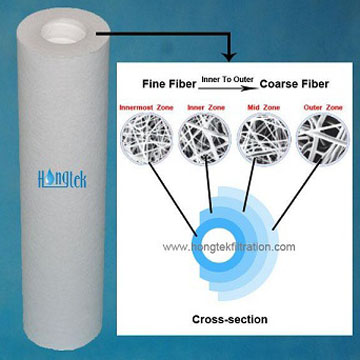

Construction of PP Melt Blown Filter Cartridges

● The cross-section drawn of PP melt blown filter cartridges

● From inner layers to outer layers of PP filters the fiber is fine to coarse

● Multilayered structure and depth filtration pattern ensure good filtration efficiency

● Formed by thermal bond without using of any binders, adhesives and and lubricants

● 100% FDA approved polypropylene for compatibility with wide range of process fluids


Working Principle of PP Melt Blown Cartridges


● The drawing is the working principle of layers structure depth pp melt blown filter cartridge

● Layers filtration keep pp melt blown filter high flow rate, good filtration efficiency and long service life

● Large particles are filtered in outer layers of melt blown cartridges which are constructed by coarse fiber

● Small particles pass the outer layers, then filtered by inner layers wich made of fine fiber and high precision



Installation of 40" 5 Micron PP Melt Blown Filter Cartridges


● Hongtek brand depth PP melt blown filters used for pre RO water filtration

● The central of PP filter elements are still no polluted, so that keep liquid clear after filtration

● After used PP filters compare with before used can apparent know the good efficiency filtration

● High quality and reasonable price melt blown cartridges increase of longer service life and save much cost

● No fiber drop out, high dirt holding, low pressure drop, high flow rate and high pressure resisting capability



Oder Information

NPPIDODMicron RatingLengthEnd CapGasket/O-ring

NPP Series

Nominal PP Melt Blown Filter Cartridges

A = 28mmC = 60mm1 = 1μm5 = 5"D = DOES = Silicone
5 = 5μm9.75 = 9.75"
Q = 61mm10 = 10μm9.8 = 9.8"T = 222/Flat(SOE)E = EPDM
20 = 20μm10 = 10"
M = 63mm30 = 30μm20 = 20"O = 222/Fin(SOE)V = Viton
B = 30mm50 = 50μm30 = 30"
75 = 75μm40 = 40"P = 226/Flat(SOE)
F = 65mm50 = 50"U = Buna
100 = 100μm60 = 60"L = 226/Fin(SOE)
70 = 70"

For Example:

NPP-A-M-5-40-D

NPP Series Nominal PP Melt Blown Filter Cartridges - 28mm - 63mm - 5μm - 40" - Double Open End (DOE)

Special specifications PP Melt Blown Filter Cartridges can be customized, such as special ID, OD, length and end caps etc.


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
Not exactly what you want? 1 request,multiple quotations Get Quotations Now >>
Sent your message to this supplier
To:
Enny Tan
Email:
Message:
Your message must be between 20-8000 characters
Quantity:
Piece
Recommend matching suppliers if this supplier doesn’t reply on Message Center within 24 hour.
  • For better quotations,include
  • -A self introduction
  • -Special requests,if any
  • View Sample

China (Mainland) | Manufacturer

Experience:Established 2016

Product quality protection
You May Like
Ingersoll Rand 92824598 Oilfilter oil filter
US $10.000 / Set
Min.Order: 0 Set
Sell Mann&Hummel 6760758116 Oilfilter filter Amlpp
US $12.000 / Set
Min.Order: 1 Set

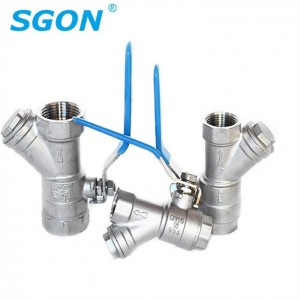

2PC Y Ball Valve Strainer With Handle
US $1,000.000 /
Min.Order: 10 Piece

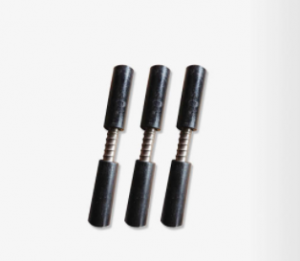

Coupler
