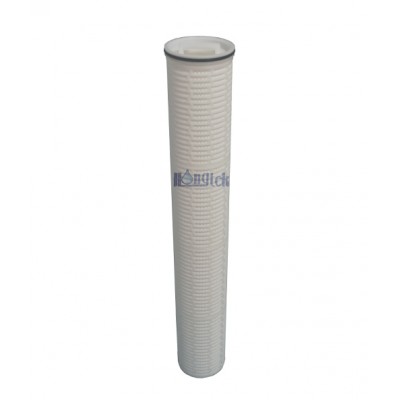

HFA Series Pleated High Flow Filter Cartridges Replace to Pall Ultipleat High Flow Filters
HFA Series Pleated High Flow Filter Cartridges Replace to Pall Ultipleat High Flow Filters
  • >= 1  Piece US $41.690
Supply Ability:
100000 Piece/Pieces per 0
Port:
Guangzhou,Shenzhen,Shanghai
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hongtek
Model Number:
HFA Series
Product Video
Product Description

Description

The large diameter geometrical design of polypropylene pleated high flow filter cartridges enlarge surface filtration area, high dirt holding capacity to save the quantities of filter cartridges, high flow rate when filtration efficiency exceed 99%. high flow filter cartridges are wide range of chemical compatibility and applications, the ideal option for industrial high flow water filtration system to protect RO membrane.

Feature
1. Gradient pore structure of high flow filter cartridges provide layered filter function
2. Outer hard cage can withstand higher pressure than Pall Ultipleat high flow filters made by soft netting
3. High flow filter cartridges are high filtration efficiency, lower waste disposal costs and more economical
4. Inside to outside filtration pattern of High flow filter cartridges ensure holding all impurities stay inside the pleated media
5. The highest flow rate of High flow filter cartridges could get 110 M3/H and Beta 5000 rated (99.98% efficiency)
6. The reduction of filtration system space maximum 50% and lower maintenance costs when use High flow filter cartridges
7. Materials meet FDA requirements, wide chemical compatibility, no resins, binders, or adhesives and 100% integrity testing

Application
1.Paints and coatings
2. Microelectronic, film and resin
3. Water treatment in Power generation
4. RO Pre filtration and sea water desalination
5. Solvents, API and water filtration in Bio field
6. Bottled water, high fructose, edible oil, soft drink and milk



Specification

Filter MediaPolypropylene(PP) Pleated
Length20"(508mm), 40"(1016mm), 60"(1524mm)
Outside Diameter6 inch (152mm)
Inside Diameter73.5mm
Filtration Rating1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/DrainagePolypropylene (PP)
End Cap MaterialGlass fiber reinforced Polypropylene (PP)
OutsideRigid Hard Cage, Stainless Steel(special)
Seal MaterialEPDM, Buna-N, Viton


Performance

Operation Data for HFA Series Pall Ultipleat Replacement Pleated High Flow Filter Cartridges

Maximum Operating Temperature180°F @ 20 psid (82°C @ 1.4 bar)
160°F @ 30 psid (71°C @ 2.1 bar)
77°F @ 50 psid (25°C @ 3.4 bar)
Suggested Maximum Flow Of Water20inch length: 660 LPM
40inch length: 1,300 LPM
60inch length: 1,900 LPM
Liquid Flow DirectionInside to outside
Typical Surface Area3.5㎡ per 20" filter cartridge
7㎡ per 40" filter cartridge
10.5㎡ per 60" filter cartridge
Recommend Change out Differential Pressure2.5 Bar at 20 ℃

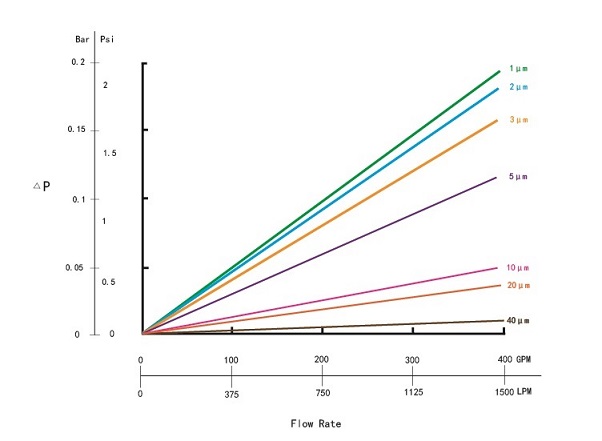

Pressure-Drop Rate for 40" HFA Series Pall Ultipleat Replacement Pleated High Flow Filter Cartridges



Tech Support

Design for High Flow Filter Cartridges

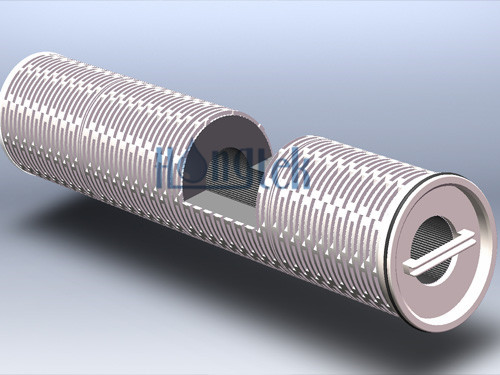

● The 3D high-end design show the advantages of structure HF Series pleated high flow filter cartridges

● The complete design is very important to research, development and manufacture of high flow pleated cartridges

● Powerful technical team can help to customize the special pleated high flow filters to replace Pall Ultipleat high flow filters

● Pay high attention to every detail, better design to create higher quality of high flow filter cartridges for water filtration system

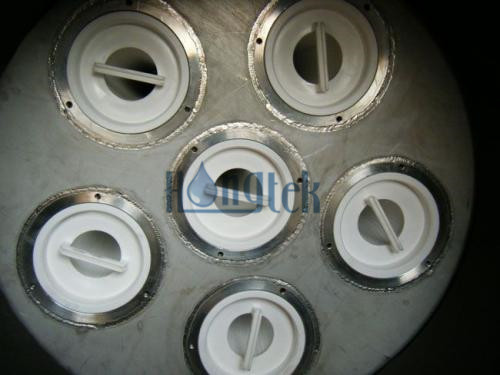

Installation for High Flow Filter Cartridges

● Inside to outside flow pattern and no bypass

● Replace to Pall Ultipleat high flow filter directly

● Outside hard cage to make stable structure and reliably good sealing

● High flow rate & low delta pressure, absolute rated filters are designed

● Smaller and more economical filter systems, lower maintenance and waste disposal costs



Oder Information

HFAMaterialLengthFiltration Rating

O-ring

Material

Inside (selective)

HFA Series Pall Ultipleat

Replacement Pleated High Flow

Filter Cartridges

P = PP Pleated20 = 20"(508mm)1 = 1μmE = EPDMC = Central PP core
2 = 2μm
3 = 3μm
40 = 40"(1016mm)5 = 5μmB = Buna-N
10 = 10μm
20 = 20μm
60 = 60"(1524mm)40 = 40μmV = Viton
50 = 50μm
70 = 70μm
100 = 100μm

For Example:

HFA-P-40-5-E

HFA Series Pall Ultipleat Replacement Pleated High Flow Filter Cartridges - Material: Polypropylene - Length = 40" - Filtration Rating = 5μm - O-ring Material = EPDM

Special specifications high flow pleated cartridges can be customized, such as central PP core, special end caps or Stainless Steel outside cage etc.


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
