Basic Info
- Model NO.: B-P01
- Length: 200m/R
- Material: Pet
- Adhesive Side: Single Sided
- Width(Mm): 5.3mm\9.3mm\13.3mm\21.3mm\25.5mm\37.5mm\49.5mm\65.
- Sealing Style: Autohesion, Press Fit
- Type: Pressure Sensitive Adhesive Tape
- Efficacy (For Tape): Pressure Sensitive Adhesive Tape
- Membrane-type (For Adhesive): PET
- Backing Paper (For Adhesive): PET
- Color: Tawney, Total Transparent
- Trademark: BLT
- Specification: 5.3mm-97.5mm
- Origin: Suzhou, China
Product Description

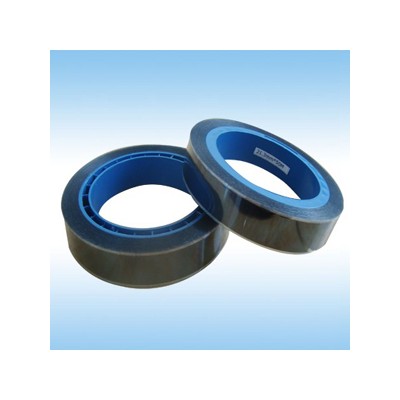

The removal strength of self-adhesive cover tape depends on the pressure.This cover tape is mainly applied for the linker, chip capacitor, resistance, integrated package and the chip. And it can coordinate with the packing of the SMD brede like the carrier tape with the material of PS,PC,PVC and PET.
Features:
1) Saves components at start of tape reel
2) Available for 8mm / 12mm/ 16mm / 24mm / 32 mm/ 44mm /50mm/56mm/72mm/88mm/104mmSMD carrier tapes
3) Reduce component lost;
4) The bond between the Tape Extender and the original cover tape is sufficient sure that they will not separate, even after prolonged time under tension.
Packing:Standard packing
Features:
1) Saves components at start of tape reel
2) Available for 8mm / 12mm/ 16mm / 24mm / 32 mm/ 44mm /50mm/56mm/72mm/88mm/104mmSMD carrier tapes
3) Reduce component lost;
4) The bond between the Tape Extender and the original cover tape is sufficient sure that they will not separate, even after prolonged time under tension.
Packing:Standard packing
| COVER TAPE(MM) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
| CARRIERTAPE(MM) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
