Basic Info
- Model NO.: 4LZF-5
- Type: Full Feed Self-Propelled Wheel Type
- Application: Rice, Wheat
- Power Source: Diesel
- Application Field: Agriculture
- Trademark: CHMC
- Specification: ISO9001: 2000
- Origin: Zhengzhou, Henan, China
- HS Code: 8433510090

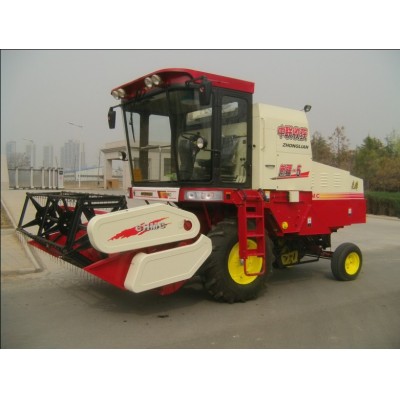

Product Description
Quick details:
1.110HP diesel engine, 2.5m cutter
2.1.7m³ Grain tank
3. Suit rice wheat harvest
4. ISO9001: 2000 certification
Product Features: )
* Enlarge the sieve area, 920mm width, improve sieve efficiency.
* The last sieve adjustable, can suit different grains.
* Multi-level cleaning system, connect blowing and inhaling, make the grain more clean, no grass, no chaff.
* Wider grain elevator, enlarged granary, reduce unloading grain times.
* Sealed cab, reduce the noise and shake, make the driver feel more comfortable.
* Lengthen the middle bridge, better and clearer field of vision for the driver.
* Steering wheel in one side of the cab.
* Special cutter device, can suit wheat and rice harvesting.
1.110HP diesel engine, 2.5m cutter
2.1.7m³ Grain tank
3. Suit rice wheat harvest
4. ISO9001: 2000 certification
Product Features: )
* Enlarge the sieve area, 920mm width, improve sieve efficiency.
* The last sieve adjustable, can suit different grains.
* Multi-level cleaning system, connect blowing and inhaling, make the grain more clean, no grass, no chaff.
* Wider grain elevator, enlarged granary, reduce unloading grain times.
* Sealed cab, reduce the noise and shake, make the driver feel more comfortable.
* Lengthen the middle bridge, better and clearer field of vision for the driver.
* Steering wheel in one side of the cab.
* Special cutter device, can suit wheat and rice harvesting.
| Product Main Technical Specification:) | ||||
| Model | Type No. | 4LZF-5 | ||
| Structural style | full feed self-propelled wheel type | |||
| Function | reap, thresh, cut and crash the straw | |||
| Size ( L, W, H ) | 6870*2750*3280mm | |||
| Net weight | 5305kg | |||
| Gear box | mechanical | |||
| Engine | model | 4108, diesel | ||
| style | four-cylinder water cooling | |||
| power | 110HP | |||
| speed | 2400r/min | |||
| Oil tank | 222L | |||
| Oil consumption | ≤20kg/hectare | |||
| Performance | Cutting width | 2500mm | ||
| Feed quantity | 5.0 - 6.0 kg/s | |||
| Work efficiency | 0.6-0.8hectare/hour | |||
| Minimum ground clearance | 340mm | |||
| Total loss rate | ≤1.2 %(wheat), ≤3%(rice) | |||
| Seed damage rate | ≤1.0 % | |||
| Impurity rate | ≤2.0 % | |||
| Stubble height | ≤130mm | |||
| Grain unloading way | Mechanical unloading | |||
| Grain Tank | 1.7m³ | |||
| Wheel | Type of drive | 2 wheels drive | ||
| Tyre size | guide | 10-15 | ||
| drive | 15-24 | |||
| Min.radius of curve | left turn | 7900 mm | ||
| right turn | 7400 mm | |||
Product quality protection
