Basic Info
- Model NO.: RA-4P2Z
- Type: Micro-Farming Machine
- Application Field: Agriculture
- Power Source: Gasoline
- Operation: Continuous Running Operation, Soil Preparation Machinery
- Trademark: RA
- Specification: CE, ISO, EPA
- Origin: Jiangsu, China (Mainland)
Product Description

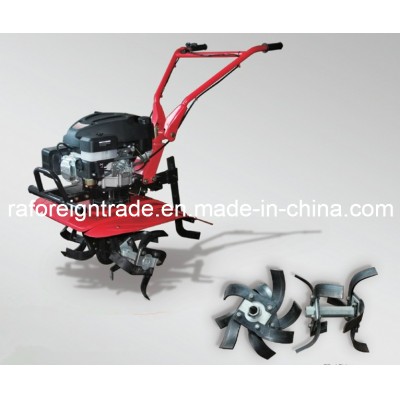

RA-4P2Z micro tillage machine adopts advanced forward roll rear wheel drive rdesign concept, design, simple structure, small volume, light weight, convenient maintenance and strong practicability. Is applicable to mountain area, the foothills of the rice paddies (terraces, small block field), hillslope, vegetables to farming, deserve to go up the corresponding machine can undertake pumping, transportation operations. Is currently farmers ideal of cultivating machines
| Specification | |||||
| RA-4P2Z 2groups/4pieces rotary blades | |||||
| Features | |||||
| Standard package with high rotary efficiency | |||||
| Scope of application | |||||
| Applicable on hardened fields and dry lands etc | |||||
| Dimensions | |||||
| Diameter: 300mm, Tilling Breadth: 600mm, | |||||
| Tilling Depth: 150mm | |||||
| Major Specification | |||||
| Model | 1WG4.0 | ||||
| Engine Model | 1P70F Gasoline | ||||
| Rated Output | 4.0KW | ||||
| Rated Speed | 3600 r/min | ||||
| Rotary Tillage Machine Equipped with 2groups/4pieces rotary blades | |||||
| Size(L*W*H) | 1250*700*900(mm) | ||||
| Weight | 65(kg) | ||||
| Operating Speed | 0.14-0.36(m/s) | ||||
| Productivity Rate | 0.053-0.1(hm3/h@m) | ||||
| Fuel Consumption | 0.8(kg/mu) | ||||
| Driving Mode | All-Geared Driven | ||||
| Connection | Coaxial-line Direct Connection | ||||
