Description of wood sawdust making machine
Wood crusher machine is a type mechanical equipment used to produce wood power. Wood crusher can make the raw materials such as wood, fork etc into sawdust in one process. The advantages of the wood crusher are less investment, low energy consumption and high productivity, good economic returns, convenient usage and maintenance, etc.
Technical parameter of wood sawdust making machine
Type | JX500 | JX600 | JX700 | JX900 | JX1000 | |
Blades quantity(pcs) | 4 | 4 | 4 | 6 | 8 | 8 |
Size of inlet(mm) | 170*150 | 220*170 | 230*190 | 230*210 | 280*250 | 290*260 |
Dia of cutter (mm) | 420 | 500 | 600 | 600 | 830 | 830 |
Size of blade(mm) | 90*60*8 | 120*70*8 | 150*70*10 | 150*100*10 | 150*100*10 | 150*100*10 |
Screen(pcs) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) | 1(3mm-8mm) |
Hammer(pcs) | 12 | 12 | 12 | 15 | 15 | 30 |
Capacity(t/h) | 1 | 1.2 | 2 | 2.5 | 3 | 4.5 |
Main rotor speed(r/min) | 600 | 600 | 550 | 550 | 600 | 600 |
Power (kw) | 7.5 | 15 | 22 | 37 | 55 | 75 |
Net weight | 244kg | 450kg | 490kg | 690kg | 1095kg | 1350 |
Gross weight(wooden crates) | 260kg | 470kg | 515kg | 715kg | 1130kg | 1390kg |
Size (mm) | 1200*550*750 | 1500*640*820 | 1500*700*900 | 1900*820*1050 | 2100*1100*1250 | 2200*1870*1500 |
Package size(mm) | 1300*650*850 | 1600*700*1000 | 1600*800*1000 | 2000*920*1150 | 2200*1200*1350 | 2300*1970*1600 |

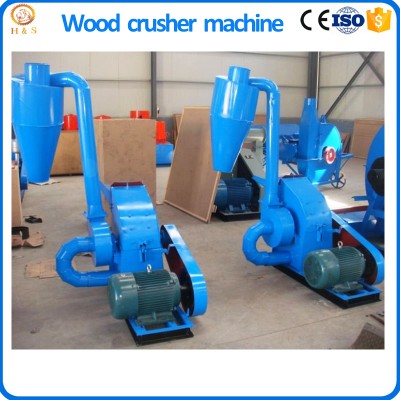

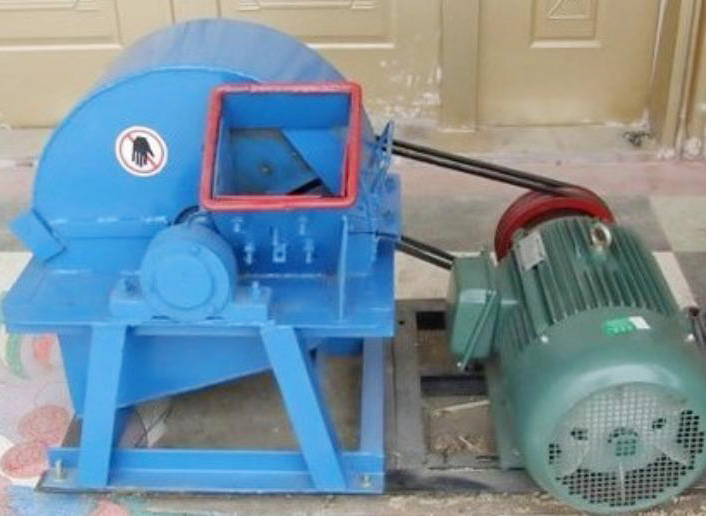

Pictures of wood sawdust making machine
