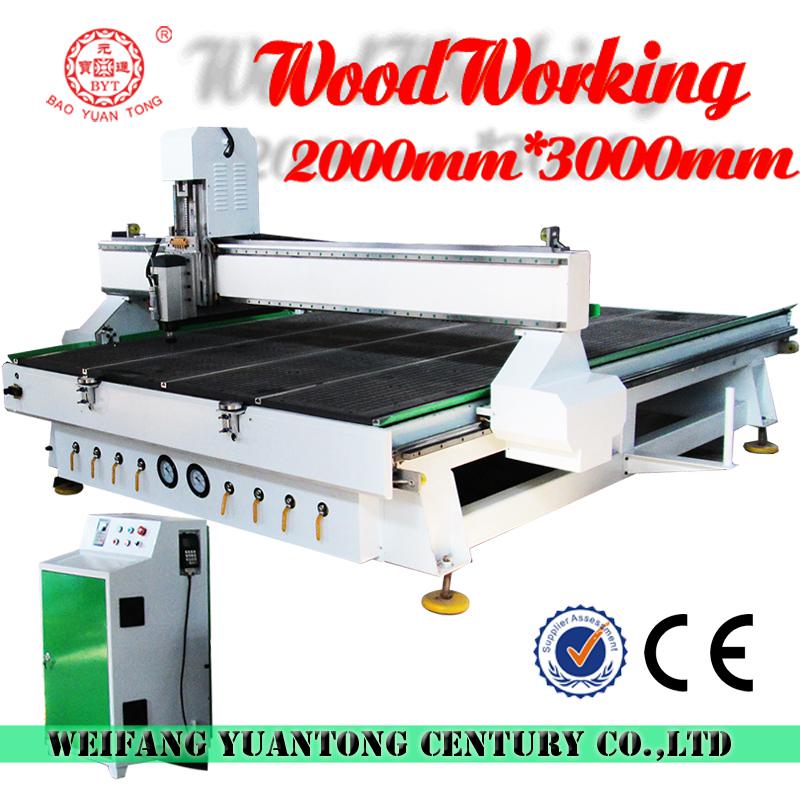

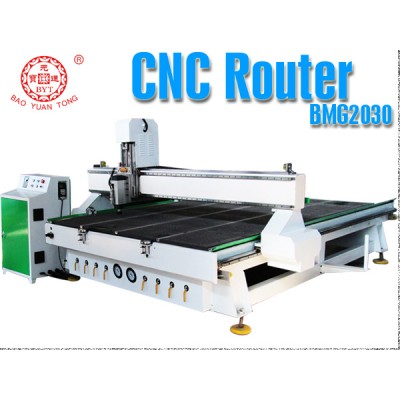

BMG2030 woodworking cnc router
BMG2030 woodworking cnc router
  • >= 1  Set US $12,000.000
Supply Ability:
0 Set/Sets per 0
Port:
Your Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Product Description


 Promotion !!! New Design BYT high quality cnc router BMG2030



Welcome to contact us and  visit our factory.

We will try our best to give you best service.



Technical data:

Model

BMG-2030

X.Y Travel

2000*3000mm

Z Travel

200mm

Spindle

3kw HSD Spindle(4.5KW,6.0KW for Option)

Transmit way

High precision pinion and rack

Guide rail

Imported square linear guide rail

Lathe bed

Enhanced strong T-shape lathe bed

Gantry

Heavy and stable squat gantry

Work-holding

Clamp or Choose vacuum suction table

Max. operating speed (DSP control)

30m/min

Resolution

0.025mm

Spindle speed

0-18000/24000rpm

Carving command

G mode*,u00*.mmg*.plt

Diameter of Cutter

φ3.175-φ12.7

Operating voltage

AC380V/50Hz

Operating mode

Stepper (Sevo Motor for Option)

Operating System

DSP

Working Software

Windows98/2000/XP/7

Compatible Software

Type3 , Artcam, Wentai (Artgrave)

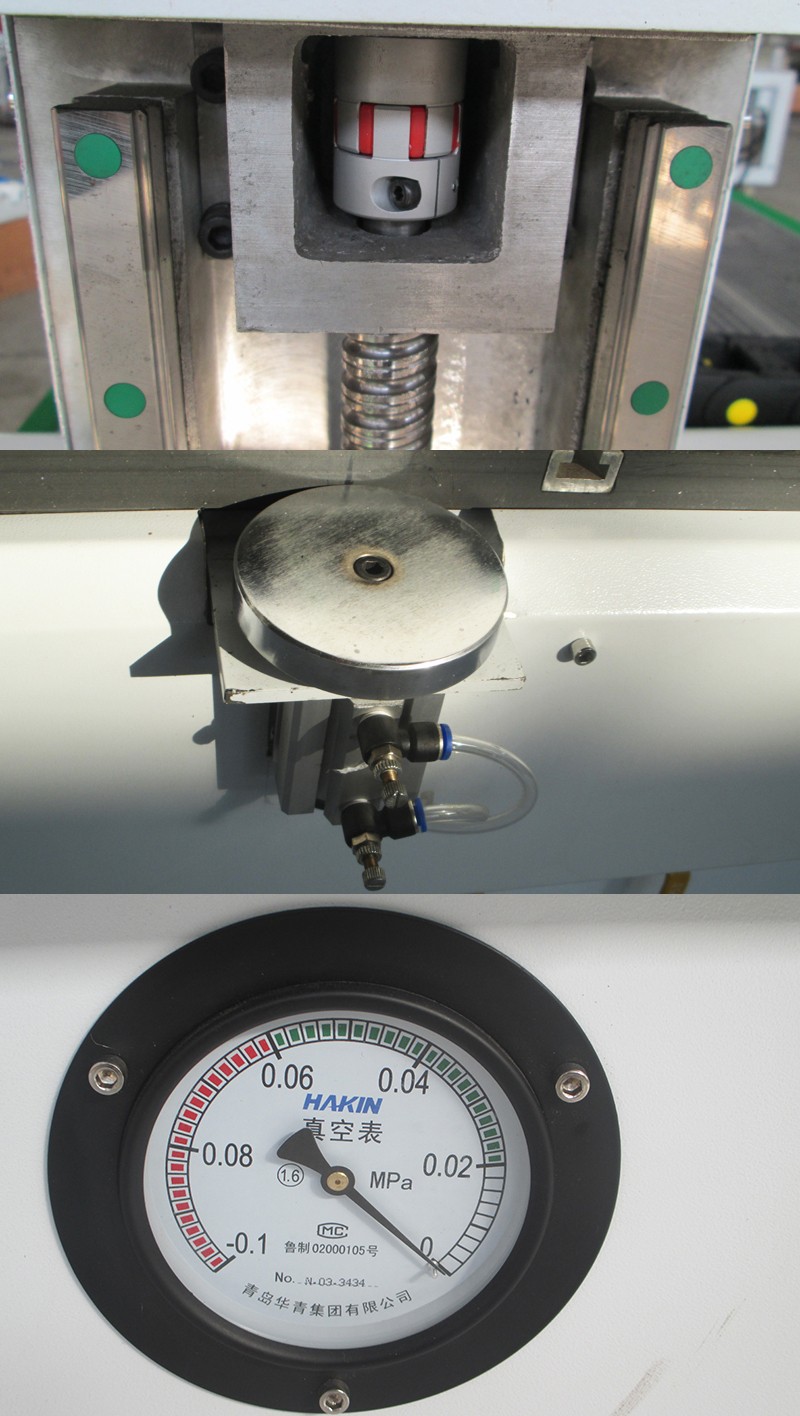

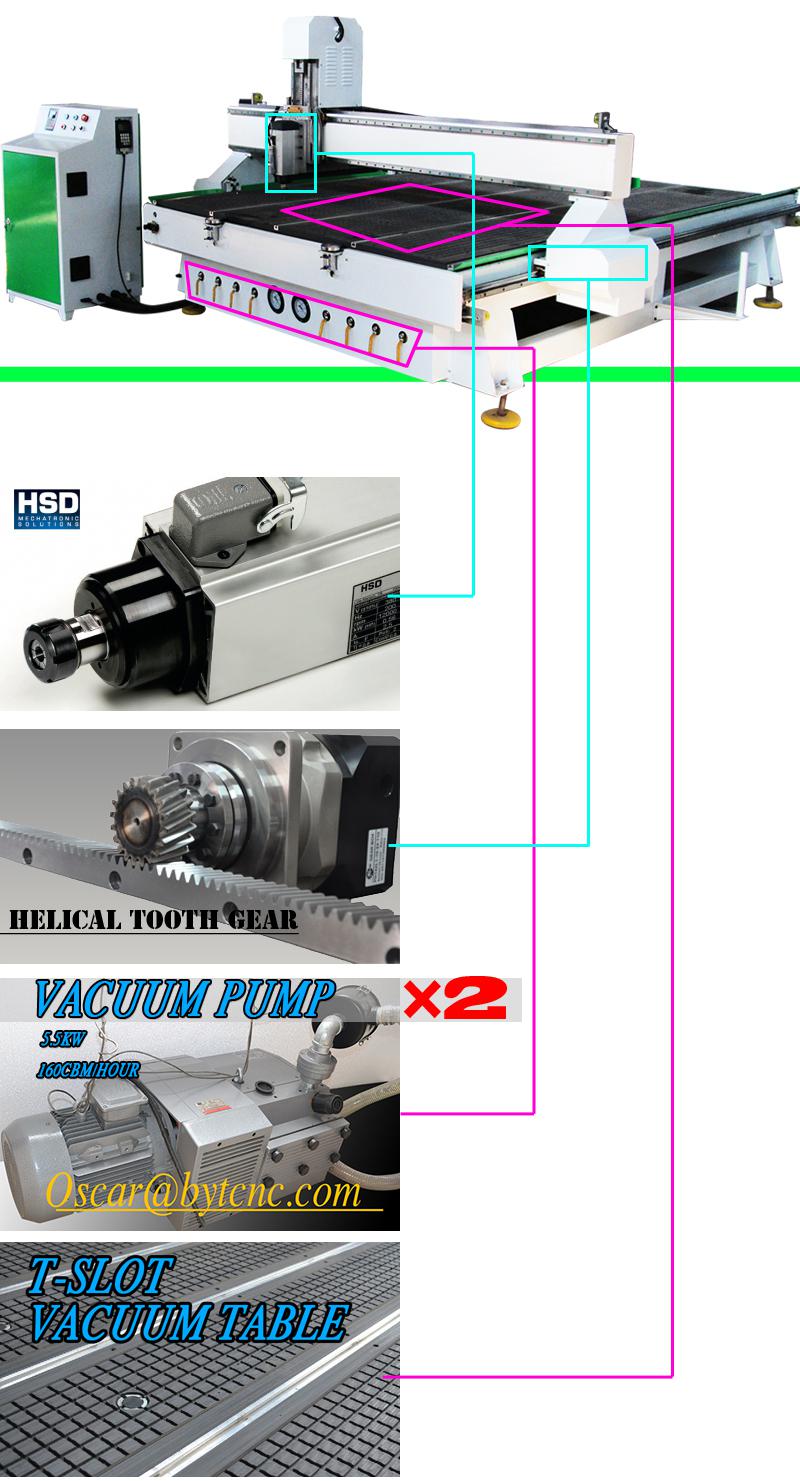

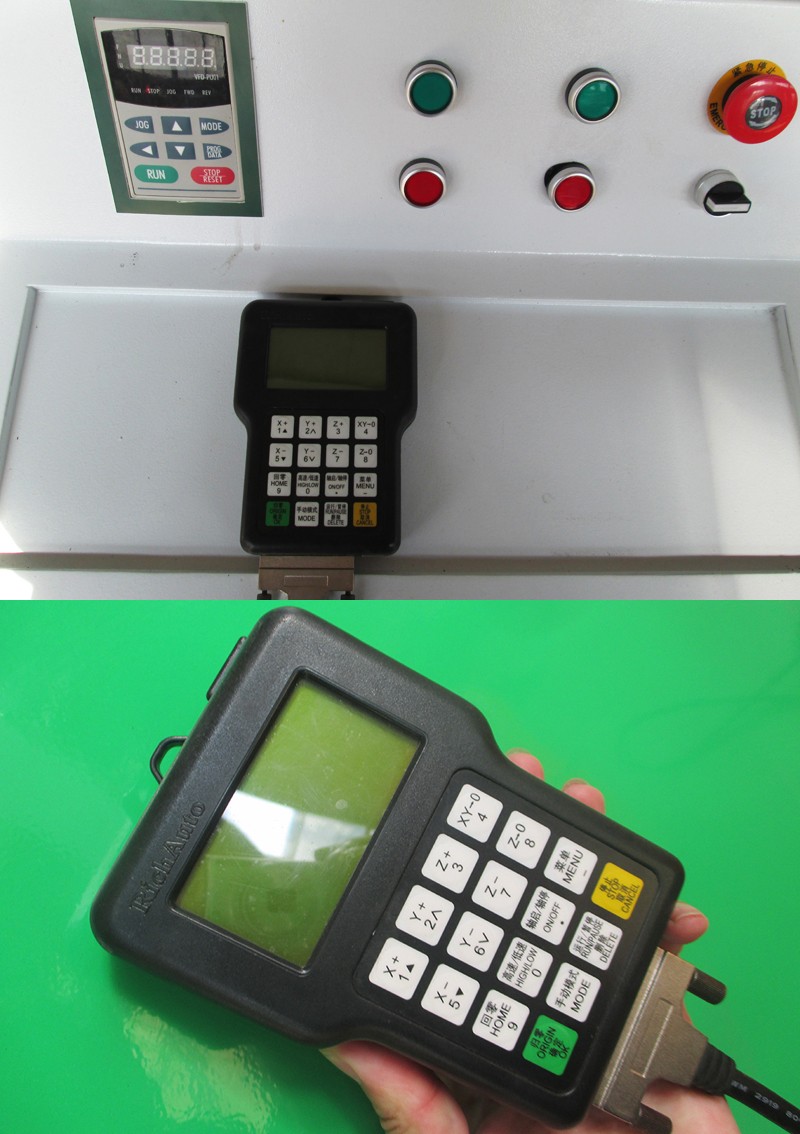

Detail pictures:



Guaranty:

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.


FAQ:



1) This is the first time I use this kind of machine, is it easy to operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.



2) If machine has any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.



3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.


CE Certification



Our Factory and Customers


Welcome to our factory!

We have more than 20 kinds  CNC Router,

Please contact us,

So we can help you select the right system to meet your needs and fit your budget !


Please use the factory-direct-buy message to contact us. We will reply in 24 hours.
